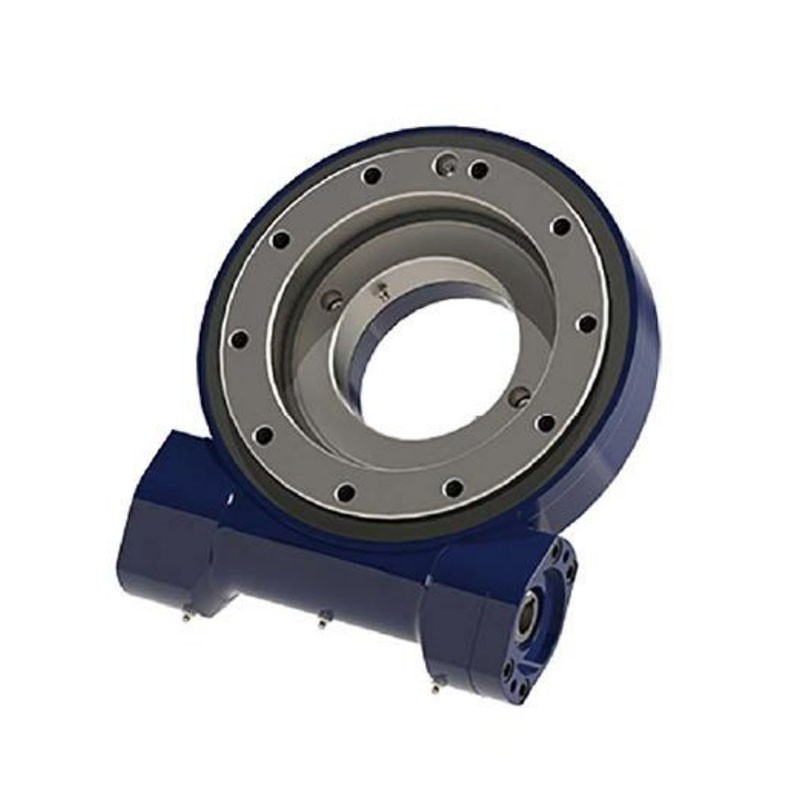

DERPIE Heavy-Duty Slewing Drive WEA9

Product Item : WEA9
Category： Slewing Drive
High Torque Output
Support & Customization
Excellent Sealing
Up to 8 kN.m (5904 lbf.ft)
INQUIRY EMAIL

In the realm of heavy - duty machinery, the Slewing Drive stands As the backbone of many construction, mining, and material - handling machines,.The WEA9 Slewing Drive is a sophisticated mechanical device designed to provide smooth and precise rotational motion between two components in heavy - duty machinery. It essentially consists of a gear - driven system housed within a compact, yet robust housing. This housing not only protects the internal components from harsh environmental elements but also provides structural integrity, ensuring long - term durability.
Key Advantages
High Torque Output: Equipped with curved-tooth design, the WEA9 generates strong torque, meeting the power needs of heavy-load machinery and ensuring smooth operation.
Superior Load-Bearing: Its thick-walled outer ring enhances load capacity, effectively withstanding heavy radial and axial loads for long-term use.
Excellent Sealing: The integrated skeleton oil seal prevents dust, water, and oil leakage, maintaining performance in dusty or humid environments.

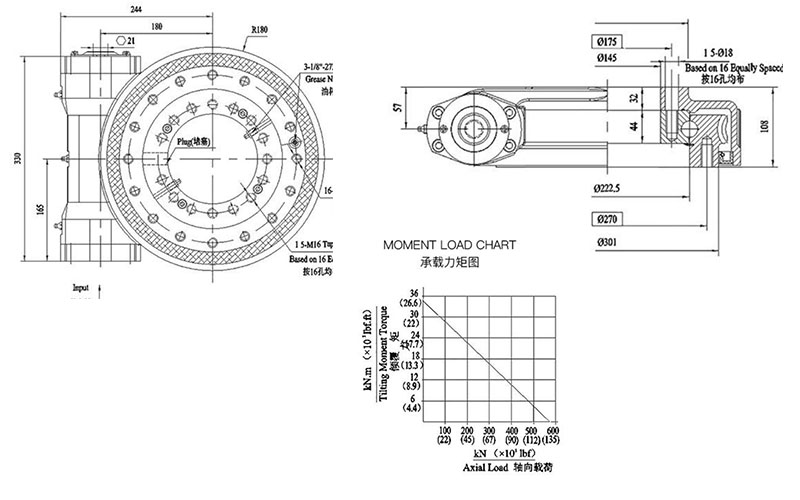

Technical Specifications

Slewing drive performance parameters
Output Torque	Tilting MomentTorque	HoldingTorque	Axial Load	Radi Load	Ratio	Backlash	Weight
8 kN.m	35.6 kN.m	39.8 kN.m	580 kN	220 KN	62:1	≤0.15°	52kg
5904 l bf.ft	26.3*10³ l bf.ft	29.37*10³ l bf.ft	130.3*10³ lbf	49.4*10³ lbf	62:1	≤0.15°	52kg

[Contact Us Today] for a detailed datasheet, a consultation with our engineers, or a competitive quote.We promise you will get the reply within 12hours!
