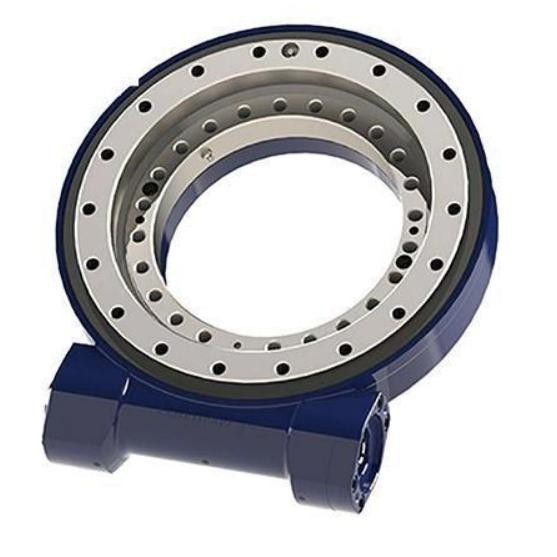

SEA14 Slewing Drive

Product Item : SEA14
Category： Slewing Drive
100% quality assurance
China factory direct supply,competitive price
Dimensional same as original part
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

A slewing drive is a gearbox, which is a complete assembly comprising gears, bearings, seals, motors, housing, and other auxiliary components. The slewing drive is easy to install and maintain, saving installation space. Since its core component is the slewing bearing, the slewing drive can simultaneously withstand axial forces, radial forces, and overturning moments.

There are numerous models of slewing drives, with different series available. The SEA series is a common category. This series of slewing drives typically adopts a low-cost enclosed design, featuring lip seals, a slewing ring assembly, 360-degree rotation, and a self-locking gear set. The device can also meet the requirements for applications in high-humidity environments, making it less susceptible to damp weather or even heavy rain.

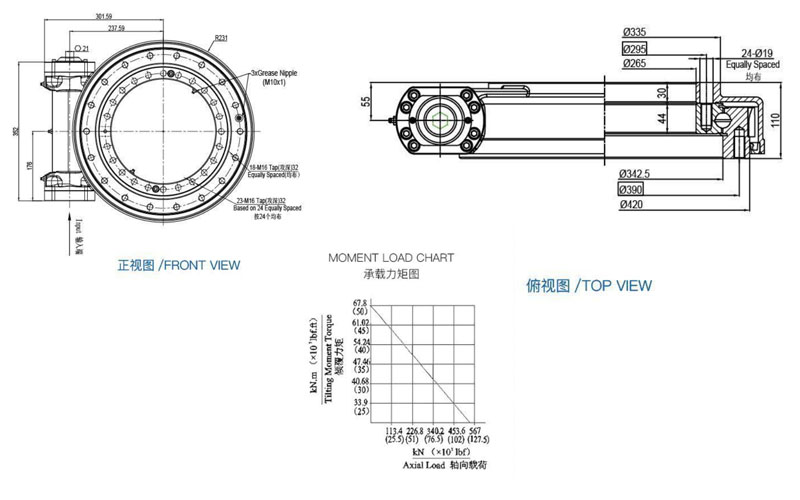

The product parameters and drawings for the SEA14 slewing drive are as follows.

Slewing drive performance parameters
Output Torque	Tilting Moment Torque	Holding Torque	Axial Load	Radial Load	Ratio	Backlash	Weight
8kN.m	67.8kN.m	49kN.m	555kN	222 KN	85:1	≤0.17°	65kg
5900 I bf.ft	50*10³ I bf.ft	36*10³ I bf.ft	125*10³ Ibf	50*10³ Ibf	85:1	≤0.17°	65kg
