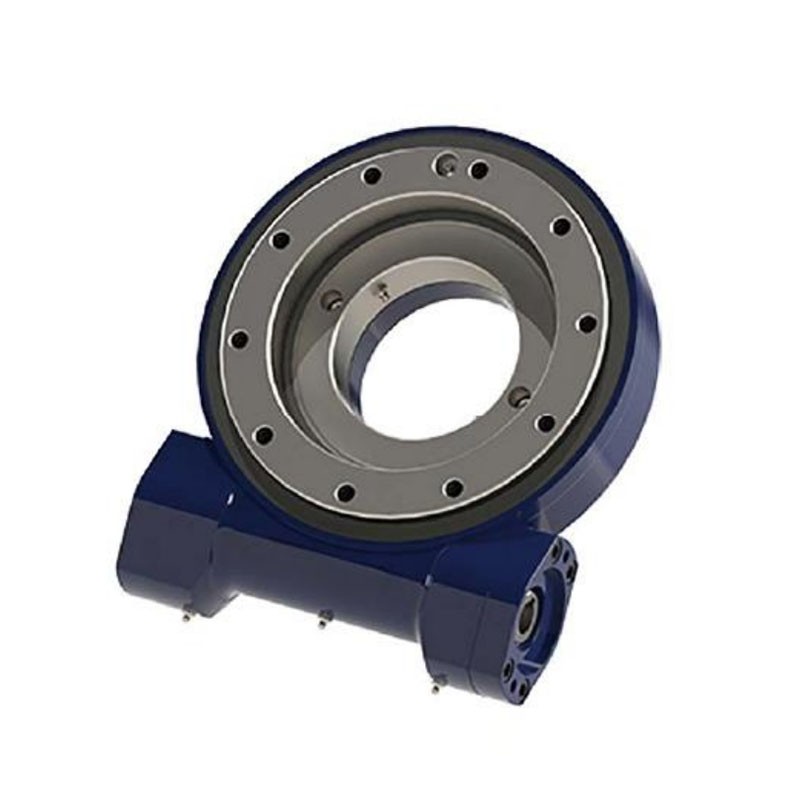

WEA14 high-torque rotation slewing drive

Product Item : WEA14
Category： Slewing Drive
High Torque Capacity
Compact & Space-Saving Design
Precision Worm Gear Drive
Robust Construction
INQUIRY EMAIL

The WEA14 is a compact slewing drive designed for applications requiring controlled, high-torque rotation. It combines the functions of a reduction gearbox, a slewing bearing, and often a mounting housing into one highly efficient package. Driven by a standard worm gear, the WEA14 offers high reduction ratios, self-locking capability, and outstanding load-bearing capacity for its size—making it an ideal solution for space-constrained yet power-hungry applications.
Key Features and Engineering Advantages
High Torque Capacity: Engineered to handle significant axial, radial, and moment loads, the WEA14 provides the muscle needed for heavy-duty operations.
Compact & Space-Saving Design: The WEA14's optimized footprint allows for easy integration into machinery where space is at a premium, without compromising on performance.
Precision Worm Gear Drive: The hardened worm and gear set ensures smooth, low-backlash operation, precise rotational control, and reliable self-locking to hold positions securely without a brake.
Robust Construction: Built with high-grade materials and sealed to protect against contaminants, the WEA14 is designed for long service life in harsh industrial environments.
Primary Applications
The versatility of the WEA14 Slewing Drive makes it the component of choice across numerous industries:
Construction & Cranes: Provides reliable rotation for crane booms, man-lifts, excavator attachments, and compact construction machinery.
Material Handling: Used in turntables, rotary conveyors, stackers, and automated guided vehicles (AGVs) for precise material positioning.

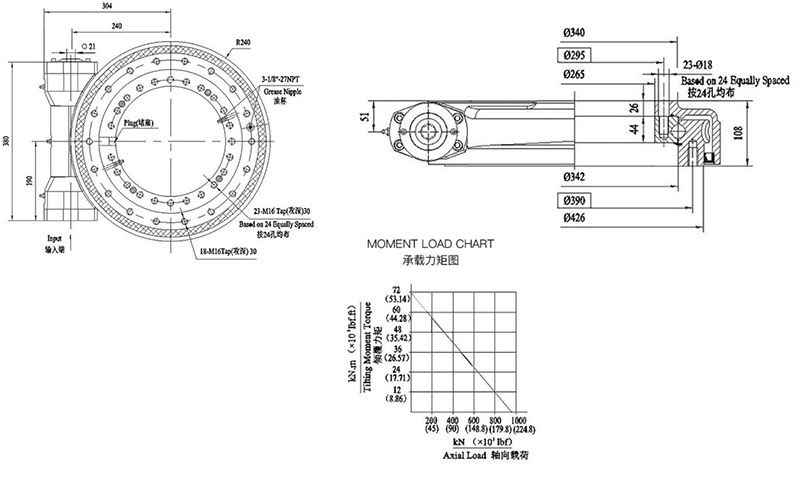

Technical Specifications & Customization

Slewing drive performance parameters
Output Torque	Tilting MomentTorque	Holding Torque	Axial Load	Radial Load	Ratio	Backlash	Weight
10.8 kN.m	71.2kN.m	49.5 kN.m	960 kN	360 kN	86:01:00	≤0.13°	57kg
7970 I bf.ft	52.5*10³ I bf.ft	36.5*10³ I bf.ft	215.8*10³ Ibf	80.9*10³ Ibf	86:01:00	≤0.13°	57kg
