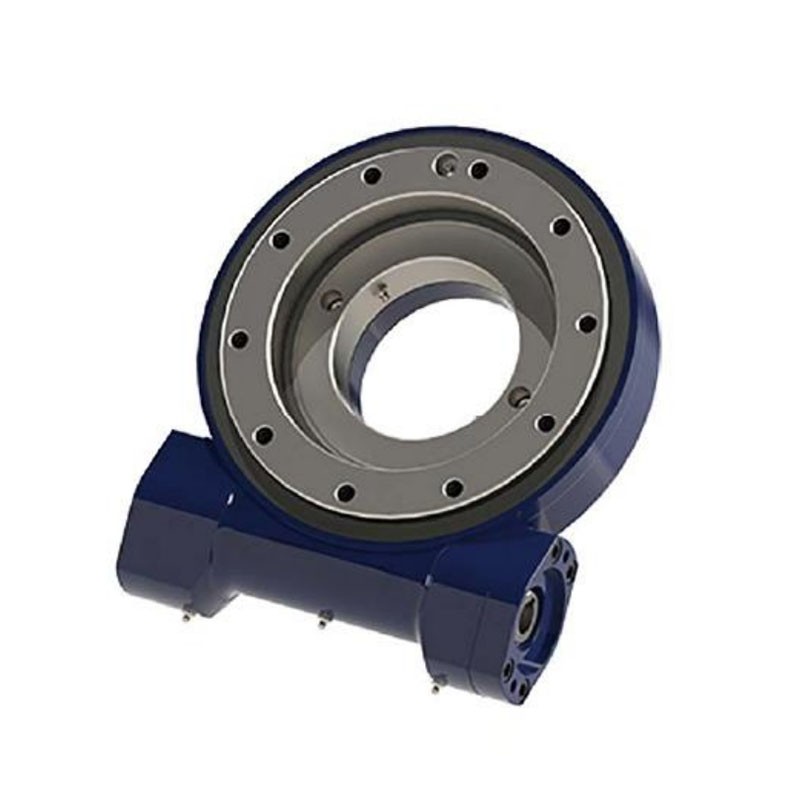

WEA17 Slewing Drive

Product Item : WEA17
Category： Slewing Drive
Exceptional Protective Performance
The robust construction and high-quality materials
High Torque Transmission
Up to 12.96kN.m (9564 lbf.ft)
INQUIRY EMAIL

In the world of heavy machinery and precision motion control, the efficiency and reliability of rotary components are paramount.
The WEA Series is an all-in-one rotary drive system that seamlessly integrates a worm gear mechanism with a high-capacity slewing bearing. This compact yet powerful unit is engineered to handle complex load combinations simultaneously, making it an ideal choice for a vast range of heavy-duty applications.
Key Features
Exceptional Protective Performance: Engineered with superior sealing systems, the WEA drive offers enhanced protection against dust, moisture, and harsh environmental elements, ensuring reliable operation and reduced maintenance.
High Torque Transmission: Designed for power-intensive applications, this drive delivers great transmission torque, enabling it to drive larger loads and handle more strenuous tasks with ease.
Superior Impact Resistance: The robust construction and high-quality materials allow the WEA drive to withstand sudden shocks and high dynamic loads, guaranteeing stability and safety in unpredictable working conditions.
Extended Service Life: Precision manufacturing, optimized heat treatment, and high-load capacity components work in concert to minimize wear and tear, resulting in a significantly longer operational lifespan and a lower total cost of ownership.

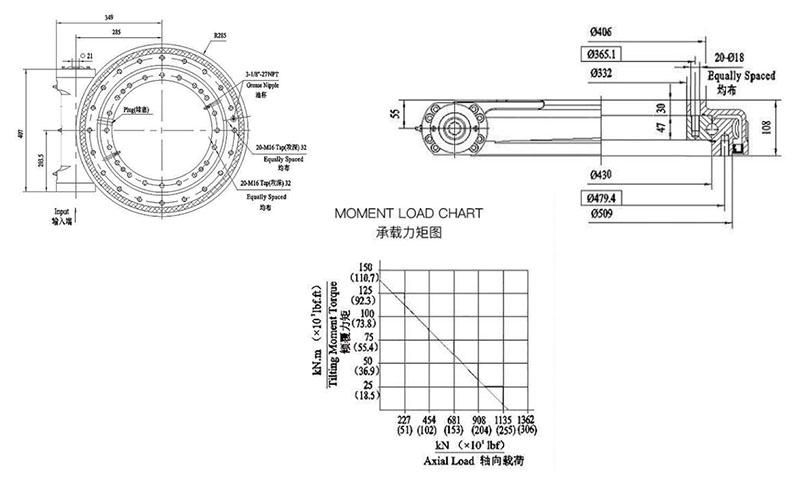

WEA17 Technical Specifications & Customization

Slewing drive performance parameters
Output Torque	Tilting Moment Torque	Holding Torque	Axial Load	Radial Load	Ratio	Backlash	Weight
12.96 KN.m	412.4 kN.m	74 kN.m	1166 kN	435 kN	104:1	≤0.1°	97kg
9564 I bf.ft	105*10³ I bf.ft	54.6*10³ I bf.ft	626*10³ Ibf	97.8*10³ Ibf	104:1	≤0.1°	97kg

If your application demands a drive that combines brute strength with precision engineering and long-term reliability, the WEA Series Slewing Drive is your ultimate solution.
