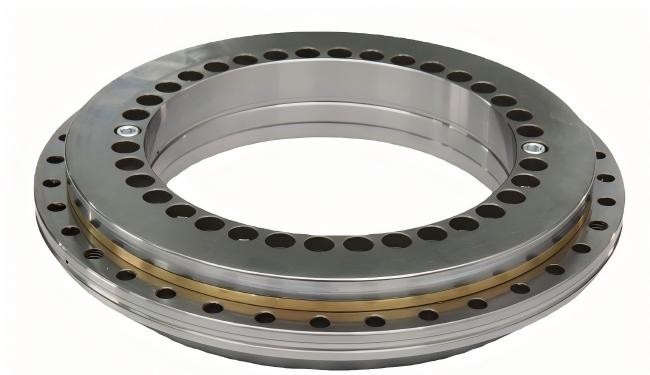

YRT260 Rotary Table Bearing

Product Item : YR260
Category： Large-sized Bearings
Axial and Radial Run‑Out≤6 μm
Precision Grade: P4 / P2 ultra-precision optional
Weight: 18.3 kg
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

The YRT260 rotary table bearing is a large-load upgraded model in the standard YRT bearing series, iterated and upgraded on the basis of YRT200. It fully inherits the unified installation interface of the entire YRT series including YRT50, YRT80, YRT120, YRT150, YRT180 and YRT200, featuring strong versatility and convenient model replacement and equipment upgrading.
Equipped with an optimized triple-row cylindrical roller composite structure, the YRT260 bearing greatly improves axial, radial load capacity and overturning moment resistance compared with medium-sized YRT models. Factory preload eliminates internal clearance, maintaining ultra-high rotary accuracy and stable repeated positioning accuracy under long-term heavy-load working conditions, which is the preferred core component for high-load precision rotary equipment.

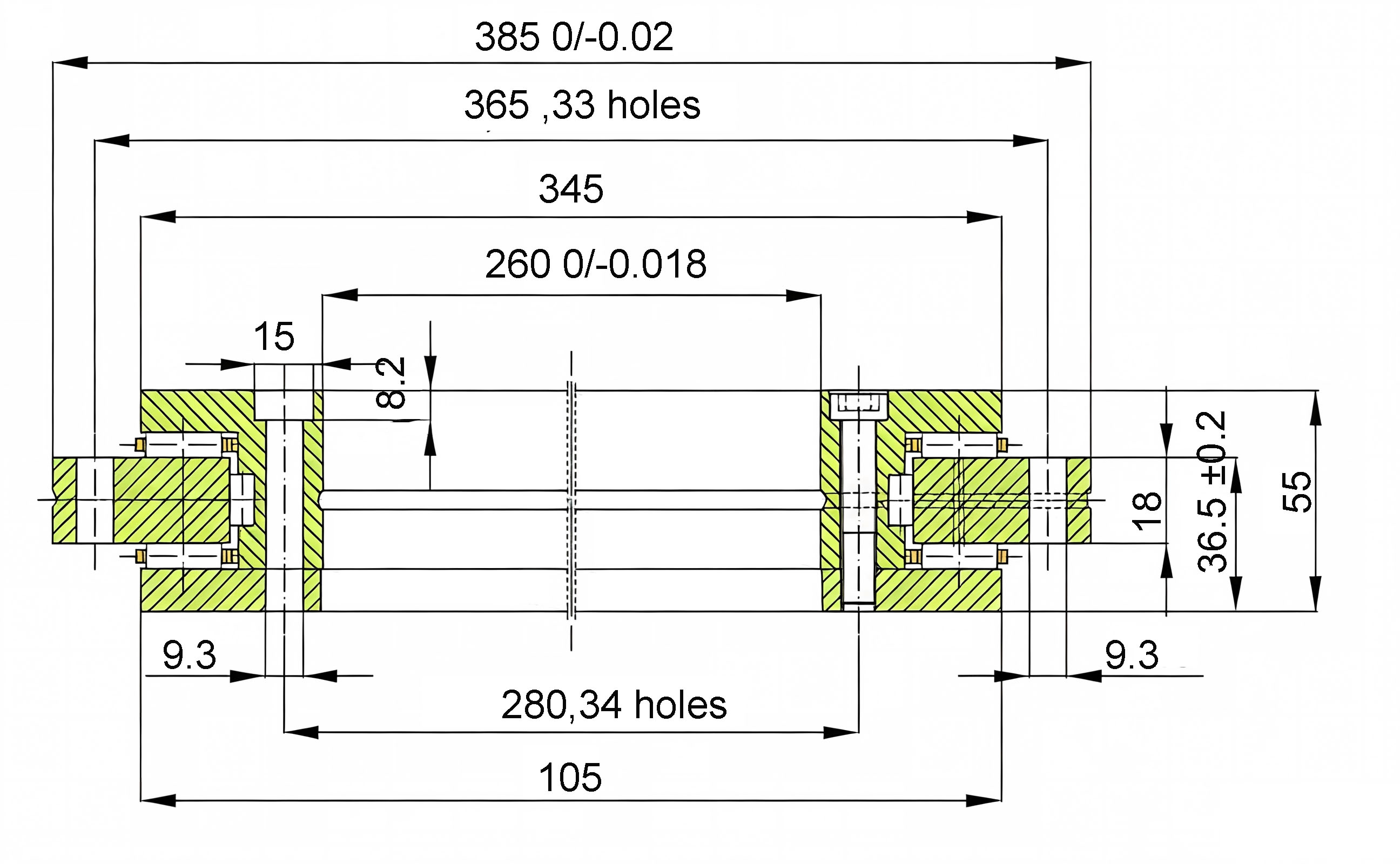

- Dimension: d 260mm, D 385 mm, H 55 mm
- Precision: P2 / P4 / P5 (customizable)
- Weight: 18.3 kg
-Axial and Radial Run-Out ≤6 μm
We specialize in the production of full-series YRT precision rotary table bearings.
info@dpmachinery.com
Whatsapp: 008615366795302
