Internal Gear 062 Series | Flange Type Thin Section Slewing Bearings

Product Item : WD-232.20.0414,WD-232.20.0544
Category： Slewing Bearing
100% replace original part
China factory direct supply,competitive price
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

Characteristic of structure, performance and application
The Thin Section Slewing Bearing has the same structure with theordinary slewing bearing,but the weight is light,and rotateflexibly,which widely used in the food machinaery,canning machineryand environmental machinery etc.

Product Specifications

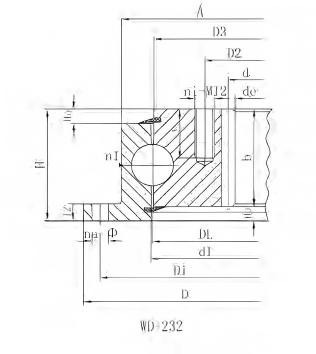

Internal Gear 062 Series Model DL	Weight kg	Dimensions			Mounting Dimensions								Structural Dimension Gear data						Gear data					Tooth force Allowed[IN]	Tooth force MAX[IN]	Clearance Axial	Clearance Radial
		D mm	de mm	H mm	D1 mm	D2 mm	na	Ø/M mm	ni	Ø/M mm	t mm	n1	D3 mm	d1 mm	A MM	C mm	hu mm	ho mm	d	m	Z	b	k.m
		D mm	de mm	H mm	D1 mm	D2 mm	na	Ø/M mm	ni	Ø/M mm	t mm	n1	D3 mm	d1 mm	A MM	C mm	hu mm	ho mm	d	m	Z	b	k.m
WD-232.20.0414	26.9	518	326.5	56	490	375	16	18	12	M12	20	4	412.5	415.5	453		10.5	10.5	335	5	67	45.5	-0.8	13.54	27.1	≤0.5	≤0.5
WD-232.20.0544	36.7	648	445.5	56	620	505	20	18	16	M12	20	4	542.5	545.5	583		10.5	10.5	456	6	76	45.5	-0.6	16.00	32.00	≤0.5	≤0.5
WD-232.20.0644	43.4	748	547.5	56	720	605	24	18	18	M12	20	4	642.5	645.5	683		10.5	10.5	558	6	93	45.5	-0.6	15.62	31.2	≤0.5	≤0.5
WD-232.20.0744	50.8	848	649.2	56	820	705	24	18	20	M12	20	4	742.5	745.5	783		10.5	10.5	660	6	110	45.5	-0.6	15.32	30.6	≤0.5	≤0.5
WD-232.20.0844	61.3	948	737.6	56	920	805	28	18	20	M12	20	4	842.5	845.5	883		10.5	10.5	752	8	94	45.5	-0.8	20.8	41.60	≤0.5	≤0.5
WD-232.20.0944	65.4	1048	841.6	56	1020	905	32	18	22	M12	20	4	942.5	945.5	983		10.5	10.5	856	8	107	45.5	-0.8	20.49	41	≤0.5	≤0.5
WD-232.20.1094	80.3	1198	985.6	56	1170	1055	32	18	24	M12	20	4	1092.5	1095.5	1133		10.5	10.5	1000	8	125	45.5	-0.8	20.16	40.3	≤0.5	≤0.5

Note:
1.n1 is the nos of lubricating holes.Oil cup M8×1JB/T7940.1~JB/T7940.2.The Oil nipple'slocation can be change according to the user's application.
4."Km" is addendum reduction.
Explore how the Internal Gear 062 Series can optimize your next design.

Tags: Thin Section Slewing Bearings(Flange Type)

PREVIOUS：CAT385, 395,390 slewing bearing for mining NEXT：External Gear 061 Series: Thin Section Slewing Bearings (Flange Type)
