External Gear 061 Series: Thin Section Slewing Bearings (Flange Type)

Product Item : WD-231.20.0544
Category： Slewing Bearing
100% replace original part
China factory direct supply,competitive price
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

Our External Gear Thin Section Bearings are built to excel in demanding applications:
Thin-Section, Lightweight Design: Significantly reduces the cross-section and overall weight of your assembly, enabling more compact and efficient machine designs without sacrificing structural integrity.
Integrated External Spur Gear: Provides a positive, reliable method for direct drive engagement, ensuring precise rotary motion control and torque transmission.
Flange-Type Mounting: The built-in flange allows for straightforward, secure, and stable installation onto adjacent structures, simplifying assembly and ensuring perfect alignment.
Smooth & Low-Friction Operation: Precision-engineered raceways and high-quality rolling elements ensure smooth rotation with minimal friction, essential for accurate positioning.
Versatile Load Capacity: Engineered to efficiently handle combined axial, radial, and moment loads typical in rotary indexing, scanning, and light-duty lifting applications.

Product Specifications

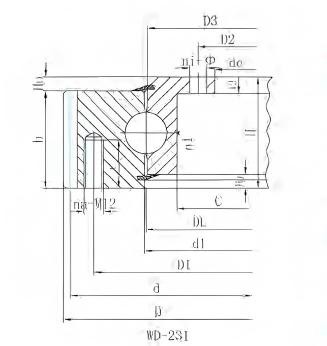

External Gear 061 Series Model DL	Weight kg	Dimensions			Mounting Dimensions								Structural Dimension Gear data						Gear data					Tooth force Allowed[IN]	Tooth force MAX[IN]	Clearance Axial	Clearance Radial
		D mm	de mm	H mm	D1 mm	D2 mm	na	Ø/M mm	ni	Ø/M mm	t mm	n1	D3 mm	d1 mm	A MM	C mm	hu mm	ho mm	d	m	Z	b	k.m
		D mm	de mm	H mm	D1 mm	D2 mm	na	Ø/M mm	ni	Ø/M mm	t mm	n1	D3 mm	d1 mm	A MM	C mm	hu mm	ho mm	d	m	Z	b	k.m
WD-231.20.0414	29.0	504	304	56	455	332	10	M12	24	18	20	4	412.5	415.5		375	10.5	10.5	495	5	99	45.5	-0.5	11.75	23.50	≤0.5	≤0.5
WD-231.20.0544	39.2	640.8	434	56	585	462	14	M12	28	18	20	4	542.5	545.5		505	10.5	10.5	630	6	105	45.5	-0.5	14.2	28.40	≤0.5	≤0.5
WD-231.20.0644	47.2	742.8	534	56	685	562	16	M12	32	18	20	4	642.5	645.5		605	10.5	10.5	732	6	122	45.5	-0.6	14.2	28.40	≤0.5	≤0.5
WD-231.20.0744	53.1	838.8	634	56	785	662	18	M12	32	18	20	4	742.5	745.5		705	10.5	10.5	828	6	138	45.5	-0.6	14.2	28.40	≤0.5	≤0.5
WD-231.20.0844	64.7	950.4	734	56	885	762	18	M12	36	18	20	4	842.5	845.5		805	10.5	10.5	936	8	117	45.5	-0.8	18.93	37.86	≤0.5	≤0.5
WD-231.20.0944	69.1	1046.4	834	56	985	862	20	M12	40	18	20	4	942.5	945.5		905	10.5	10.5	1032	8	129	45.5	-0.8	18.93	37.86	≤0.5	≤0.5
WD-231.20.1094	82.5	1198.4	984	56	1135	1012	22	M12	40	18	20	4	1092.5	1095.5		1055	10.5	10.5	1184	8	148	45.5	-0.8	18.93	37.86	≤0.5	≤0.5

Note:
1.n1 is the nos of lubricating holes.Oil cup M8×1JB/T7940.1~JB/T7940.2.The Oil nipple'slocation can be change according to the user's application.
4."Km" is addendum reduction.
