Ungear 060 Series: Thin Section Slewing Bearings (Flange Type)

Product Item : WD-230.20.0414
Category： Slewing Bearing
100% replace original part
China factory direct supply,competitive price
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

The Thin Section Slewing Bearing has the same structure with theordinary slewing bearing,but the weight is light,and rotate flexibly.
This versatile bearing is widely adopted across industries that prioritize efficient, space-saving mechanical design:
Food Processing & Packaging Machinery
Canning and Bottling Equipment
Environmental & Recycling Machinery
Robotic Arms and Rotary Indexing Tables
Medical and Laboratory Automation Equipment
Optical and Surveillance Devices

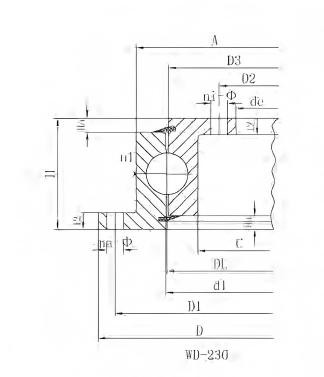

Product technical parameters

Ungear 060 Series Model DL	Weight kg	Dimensions			Mounting Dimensions								Structural Dimension Gear data						Gear data					Tooth force Allowed[IN]	Tooth force MAX[IN]	Clearance Axial	Clearance Radial
		D mm	de mm	H mm	D1 mm	D2 mm	na	Ø/M mm	ni	Ø/M mm	t mm	n1	D3 mm	d1 mm	A MM	C mm	hu mm	ho mm	d	m	Z	b	k.m
		D mm	de mm	H mm	D1 mm	D2 mm	na	Ø/M mm	ni	Ø/M mm	t mm	n1	D3 mm	d1 mm	A MM	C mm	hu mm	ho mm	d	m	Z	b	k.m
WD-230.20.0414	23.0	518	304	56	490	332	16	18	24	18	20	4	412.5	415.5	453	375	10.5	10.5								≤0.5	≤0.5
WD-230.20.0544	30.4	648	434	56	620	462	20	18	28	18	20	4	542.5	545.5	583	505	10.5	10.5								≤0.5	≤0.5
WD-230.20.0644	35.8	748	534	56	720	562	24	18	32	18	20	4	642.5	645.5	683	605	10.5	10.5								≤0.5	≤0.5
WD-230.20.0744	42.2	848	634	56	820	662	24	18	32	18	20	4	742.5	745.5	783	705	10.5	10.5								≤0.5	≤0.5
WD-230.20.0844	47.1	948	734	56	920	762	28	18	36	18	20	4	842.5	845.5	883	805	10.5	10.5								≤0.5	≤0.5
WD-230.20.0944	52.3	1048	834	56	1020	862	32	18	40	18	20	4	942.5	945.5	983	905	10.5	10.5								≤0.5	≤0.5
WD-230.20.1094	61.1	1198	984	56	1170	1012	32	18	40	18	20	4	1092.5	1095.5	1133	1055	10.5	10.5								≤0.5	≤0.5

Note:

1.n1 is the nos of lubricating holes.Oil cup M8×1JB/T7940.1~JB/T7940.2.The Oil nipple'slocation can be change according to the user's application.
4."Km" is addendum reduction.

Tags: Thin Section Slewing Bearings (Flange Type)
