External Gear 131/132 Series Three Row Roller Slewing Bearing-Part1

Product Item : 131.25.500,132.25.500
Category： Slewing Bearing
100% replace original part
China factory direct supply,competitive price
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

The three row roller slewing bearing has three seat rings, which separate the upper, lower andradial raceways, it made each row of the roller's load capacity can be specified and can beardiferent loads simultaneously. The capacity load is the largest one compare with the otherthree models. Due to the large size in axial and radial dimension & the solid structure, it isspecially suitable for the heavy duty machinery such as wheeled excavator, wheeled crane, shipcrane, ladle turrets and the heavy duty mobile crane etc.

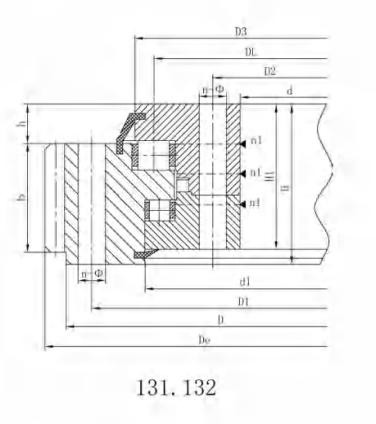

External Gear 131/132 Series Non-Gear Three-Row Roller Slewing Bearing are as follows:

NO.	Non gear DL mm	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					Tooth force		Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	D3 mm	d1 mm	n1	H1 mm	h mm	b mm	x	M mm	De mm	z	Norm alizing Z10 4N	Quenching T10 4N

1	131.25.500	634	366	148	598	402	24	18	M16	32	537	526	4	138	32	80	0.5	5	664	130	5	6.7	224
	132.25.500																	6	664.8	108	6	8
2	131.25.560	694	426	148	658	462	24	18	M16	32	597	586	4	138	32	80	0.5	5	724	142	5	6.7	240
	132.25.560																	6	724.8	118	6	8
3	131.25.630	764	496	148	728	532	28	18	M16	32	667	656	4	138	32	80	0.5	6	808.8	132	6	8	270
	132.25.630																	8	806.4	98	8	11
4	131.25.710	844	576	148	808	612	28	18	M16	32	747	736	4	138	32	80	0.5	6	886.8	145	6	8	300
	132.25.710																	8	886.4	108	8	11
5	131.32.800	964	636	182	920	680	36	22	M20	40	841	830	4	172	40	120	0.5	8	1006.4	123	12.1	16.7	500
	132.32.800																	10	1008	98	15.1	20.9
6	131.32.900	1064	736	182	1020	780	36	22	M20	40	941	930	4	172	40	120	0.5	8	1102.4	135	12.1	16.7	600
	132.32.900																	10	1108	108	15.1	20.9
7	131.32.1000	1164	836	182	1120	880	40	22	M20	40	1041	1030	5	172	40	120	0.5	10	1218	119	15.1	20.9	680
	132.32.1000																	12	1221.6	99	18.1	25.1
8	131.32.1120	1284	956	182	1240	1000	40	22	M20	40	1161	1150	5	172	40	120	0.5	10	1338	131	15.1	20.9	820
	132.32.1120																	12	1341.6	109	18.1	25.1
9	131.40.1250	1445	1055	220	1393	1107	45	26	M24	48	1300	1287	5	210	50	150	0.5	12	1509.6	123	22.9	31.4	1200
	132.40.1250																	14	1509.2	105	26.3	36.6
10	131.40.1400	1595	1205	220	1543	1257	45	26	M24	48	1450	1437	5	210	50	150	0.5	12	1665.6	136	22.9	31.4	1300
	132.40.1400																	14	1663.2	116	26.3	36.6

Note:

1.n1 is the nos of lubricating holes.Oi cup M10x1JB/T7940.1~JB/T7940.2.The Oil nipple'slocation can be change according to the user's application.
2..n- φ can change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the fomm is the max tooth force,the nominal tangentialtooth force is 1/2 of the max one.

4. “K" is addendum reduction coefficient.

External Gear 131/132 Series Three Row Roller Slewing Bearing-Part 2
