External Gear 131/132 Series Three Row Roller Slewing Bearing-Part 2

Product Item : 131/132 Series
Category： Slewing Bearing
100% replace original part
China factory direct supply,competitive price
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

The three row roller slewing bearing has three seat rings, which separate the upper, lower andradial raceways, it made each row of the roller's load capacity can be specified and can beardiferent loads simultaneously. The capacity load is the largest one compare with the otherthree models. Due to the large size in axial and radial dimension & the solid structure, it isspecially suitable for the heavy duty machinery such as wheeled excavator, wheeled crane, shipcrane, ladle turrets and the heavy duty mobile crane etc.

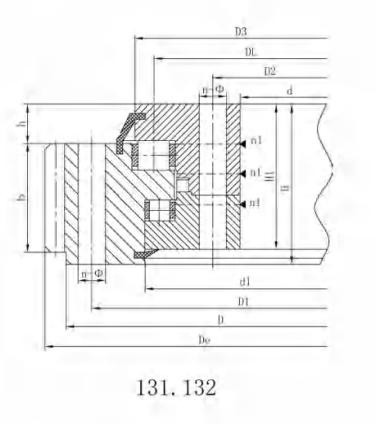

External Gear 131/132 Series Non-Gear Three-Row Roller Slewing Bearing are as follows:

NO.	Non gear DL mm	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					Tooth force		Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	D3 mm	d1 mm	n1	H1 mm	h mm	b mm	x	M mm	De mm	z	Norm alizing Z10 4N	Quenching T10 4N

11	131.40.1600	1795	1405	220	1743	1457	48	26	M24	48	1650	1637	6	210	50	150	0.5	14	1873.2	131	26.3	36.6	1520
	132.40.1600																	16	1868.8	114	30.2	41.7
12	131.40.1800	1995	1605	220	1943	1657	48	26	M24	48	1850	1837	6	210	50	150	0.5	14	2069.2	145	26.3	36.6	1750
	132.40.1800																	16	2076.8	127	30.2	41.7
13	131.45.2000	2221	1779	231	2155	1845	60	33	M30	60	2055	2033	6	219	54	160	0.5	16	2300.8	141	32.2	44.5	2400
	132.45.2000																	18	2300.4	125	36.2	50.1
14	131.45.2240	2461	2019	231	2395	2085	60	33	M30	60	2295	2273	6	219	54	160	0.5	16	2556.8	157	32.2	44.5	2700
	132.45.2240																	18	2552.4	139	36.2	50.1
15	131.45.2500	2721	2279	231	2655	2345	72	33	M30	60	2555	2533	8	219	54	160	0.5	18	2822.4	154	36.2	50.1	3000
	132.45.2500																	20	2816	138	40.2	55.6
16	131.45.2800	3021	2579	231	2955	2645	72	33	M30	60	2855	2833	8	219	54	160	0.5	18	3110.4	170	36.2	50.1	3400
	132.45.2800																	20	3116	153	40.2	55.6
17	131.50.3150	3432	2868	270	3342	2958	72	45	M42	84	3213	3196	8	258	65	180	0.5	20	3536	174	45.2	62.6	5000
	132.50.3150																	22	3537.6	158	49.8	68.9
18	131.50.3550	3832	3268	270	3742	3358	72	45	M42	84	3613	3596	8	258	65	180	0.5	20	3936	194	45.2	62.6	5680
	132.50.3550																	22	3933.6	176	49.8	68.9
19	131.50.4000	4282	3718	270	4192	3808	80	45	M42	84	4063	4046	8	258	65	180	0.5	22	4395.6	197	49.8	68.9	6470
	132.50.4000																	25	4395	173	56.5	78.3
20	131.50.4500	4782	4218	270	4692	4308	80	45	M42	84	4563	4546	8	258	65	180	0.5	22	4901.6	220	49.8	68.9	7320
	132.50.4500																	25	4895	193	56.5	78.3

Note:
1.n1 is the nos of lubricating holes.Oi cup M10x1JB/T7940.1~JB/T7940.2.The Oil nipple'slocation can be change according to the user's application.
2..n- φ can change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the fomm is the max tooth force,the nominal tangentialtooth force is 1/2 of the max one.
4. “K" is addendum reduction coefficient.
External Gear 131/132 Series Three Row Roller Slewing Bearing-Part 1
