Internal Gear 133/1 34 Series Three Row Roller Slewing Bearing Part1

Product Item : 133.25.710,134.25.710
Category： Slewing Bearing
100% replace original part
China factory direct supply,competitive price
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

The three row roller slewing bearing has three seat rings, which separate the upper, lower andradial raceways, it made each row of the roller's load capacity can be specified and can beardiferent loads simultaneously. The capacity load is the largest one compare with the otherthree models. Due to the large size in axial and radial dimension & the solid structure, it isspecially suitable for the heavy duty machinery such as wheeled excavator, wheeled crane, shipcrane, ladle turrets and the heavy duty mobile crane etc.

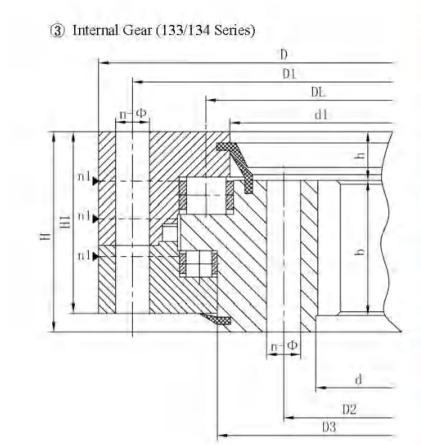

Internal Gear 133/1 34 Series Three Row Roller Slewing Bearing are as follows:

NO.	Internal gear DL mm	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					Tooth force		Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	D3 mm	d1 mm	n1	H1 mm	h mm	b mm	x	M mm	De mm	z	Norm alizing Z10 4N	Quenching T10 4N

1	133.25.500	634	366	148	598	402	24	18	M16	32	474	463	4	10	32	80	0.5	5	337	68	5	6.7	224
	134.25.500																	6	338.4	57	6	8
2	133.25.560	694	426	148	658	462	24	18	M16	32	534	523	4	10	32	80	0.5	5	397	80	5	6.7	240
	134.25.560																	6	398.4	67	6	8
3	133.25.630	764	496	148	728	532	28	18	M16	32	604	593	4	10	32	80	0.5	6	458.4	77	6	8	270
	134.25.630																	8	459.2	58	8	11
4	133.25.710	844	576	148	808	612	28	18	M16	32	684	673	4	10	32	80	0.5	6	536.4	90	6	8	300
	134.25.710																	8	539.2	68	8	11
5	133.32.800	964	636	182	920	680	36	22	M20	40	770	759	4	10	40	120	0.5	8	595.2	75	12.1	16.7	500
	134.32.800																	10	594	60	15.1	20.9
6	133.32.900	1064	736	182	1020	780	36	22	M20	40	870	859	4	10	40	120	0.5	8	691.2	87	12.1	16.7	600
	134.32.900																	10	694	70	15.1	20.9
7	133.32.1000	1164	836	182	1120	880	40	22	M20	40	970	959	5	10	40	120	0.5	10	784	79	15.1	20.9	680
	134.32.1000																	12	784.8	66	18.1	25.1
8	133.32.1120	1284	956	182	1240	1000	40	22	M20	40	1090	1079	5	10	40	120	0.5	10	904	91	15.1	20.9	820
	134.32.1120																	12	904.8	76	18.1	25.1
9	133.40.1250	1445	1055	220	1393	1107	45	26	M24	48	1213	1200	5	10	50	150	0.5	12	988.8	83	22.9	31.4	1200
	134.40.1250																	14	985.6	71	26.3	36.6
10	133.40.1400	1595	1205	220	1543	1257	45	26	M24	48	1363	1350	5	10	50	150	0.5	12	1144.8	96	22.9	31.4	1300
	134.40.1400																	14	1139.6	82	26.3	36.6

Note:
1.n1 is the nos of lubricating holes.Oi cup M10x1JB/T7940.1~JB/T7940.2.The Oil nipple'slocation can be change according to the user's application.
2..n- φ can change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the fomm is the max tooth force,the nominal tangentialtooth force is 1/2 of the max one.

4. “K" is addendum reduction coefficient.

Internal Gear 133/1 34 Series Three Row Roller Slewing Bearing Part 2

Tags: Three Row Roller Slewing Bearing
