Internal Gear 133/1 34 Series Three Row Roller Slewing Bearing Part2

Product Item : 133.40.1600,134.40.1600
Category： Slewing Bearing
100% replace original part
China factory direct supply,competitive price
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

The three row roller slewing bearing has three seat rings, which separate the upper, lower andradial raceways, it made each row of the roller's load capacity can be specified and can beardiferent loads simultaneously. The capacity load is the largest one compare with the otherthree models. Due to the large size in axial and radial dimension & the solid structure, it isspecially suitable for the heavy duty machinery such as wheeled excavator, wheeled crane, shipcrane, ladle turrets and the heavy duty mobile crane etc.

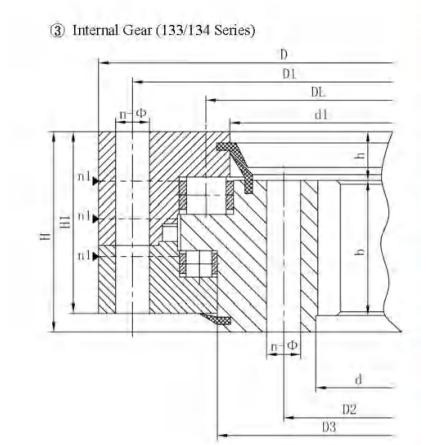

Internal Gear 133/1 34 Series Three Row Roller Slewing Bearing are as follows:

NO.	Internal gear DL mm	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					Tooth force		Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	D3 mm	d1 mm	n1	H1 mm	h mm	b mm	x	M mm	De mm	z	Norm alizing Z10 4N	Quenching T10 4N

11	133.40.1600	1795	1405	220	1743	1457	48	26	M24	48	1563	1550	6	10	50	150	0.5	14	1335.6	96	26.3	36.6	1520
	134.40.1600																	16	1334.4	84	30.2	41.7
12	133.40.1800	1995	1605	220	1943	1657	48	26	M24	48	1763	1750	6	10	50	150	0.5	14	1531.6	110	26.3	36.6	1750
	134.40.1800																	16	1526.4	96	30.2	41.7
13	133.45.2000	2221	1779	231	2155	1845	60	33	M30	60	1967	1945	6	12	54	160	0.5	16	1702.4	107	32.2	44.5	2400
	134.45.2000																	18	1699.2	95	36.2	50.1
14	133.45.2240	2461	2019	231	2395	2085	60	33	M30	60	2207	2185	6	12	54	160	0.5	16	1926.4	121	32.2	44.5	2700
	134.45.2240																	18	1933.2	108	36.2	50.1
15	133.45.2500	2721	2279	231	2655	2345	72	33	M30	60	2467	2445	8	12	54	160	0.5	18	2185.2	122	36.2	50.1	3000
	134.45.2500																	20	2188	110	40.2	55.6
16	133.45.2800	3021	2579	231	2955	2645	72	33	M30	60	2767	2745	8	12	54	160	0.5	18	2491.2	139	36.2	50.1	3400
	134.45.2800																	20	2488	125	40.2	55.6
17	133.50.3150	3432	2868	270	3342	2958	72	45	M42	84	3104	3090	8	12	65	180	0.5	20	2768	139	45.2	62.6	5000
	134.50.3150																	22	2758.8	126	49.8	68.9
18	131.50.3550	3832	3268	270	3742	3358	72	45	M42	84	3504	3490	8	258	65	180	0.5	20	3168	159	45.2	62.6	5680
	132.50.3550																	22	3154.8	144	49.8	68.9
19	131.50.4000	4282	3718	270	4192	3808	80	45	M42	84	3954	3940	8	258	65	180	0.5	22	3116.8	165	49.8	68.9	6470
	132.50.4000																	25	3610	145	56.5	78.3
20	131.50.4500	4782	4218	270	4692	4308	80	45	M42	84	4454	4440	8	258	65	180	0.5	22	4122.8	188	49.8	68.9	7320
	132.50.4500																	25	4110	165	56.5	78.3

Note:
1.n1 is the nos of lubricating holes.Oi cup M10x1JB/T7940.1~JB/T7940.2.The Oil nipple'slocation can be change according to the user's application.
2..n- φ can change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the fomm is the max tooth force,the nominal tangentialtooth force is 1/2 of the max one.

4. “K" is addendum reduction coefficient.

Internal Gear 133/1 34 Series Three Row Roller Slewing Bearing Part 1

Tags: Three Row Roller Slewing Bearing
