SEA9 Slewing Drive

Product Item : SEA9
Category： Slewing Drive
Superior Torque Density
Robust Construction
Precision Engineering
Sealed for Protection
INQUIRY EMAIL

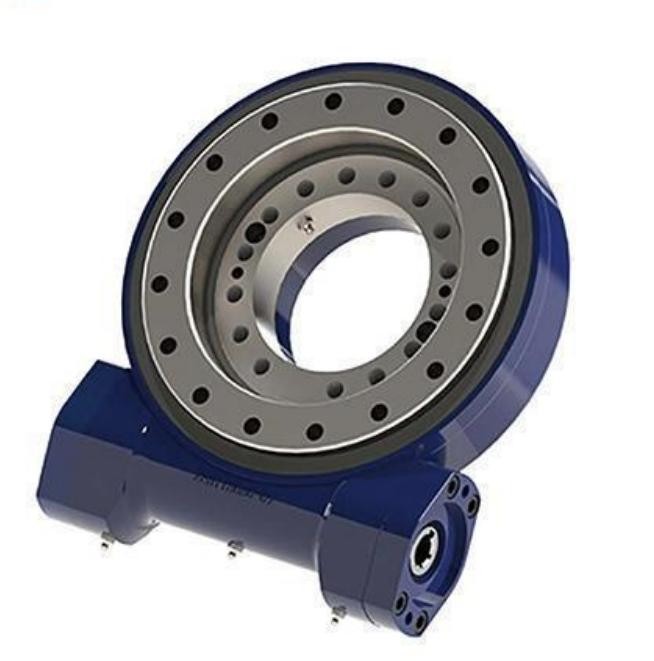

The SEA9 Slewing bearing is a fully integrated gearbox system that combines a high-precision slewing ring with a compact worm gear mechanism. This innovative design provides a powerful 360-degree rotational movement, capable of handling immense axial, radial, and moment loads simultaneously. Its self-locking capability and high reduction ratios make it the ideal choice for applications requiring precise positioning and holding under significant stress.

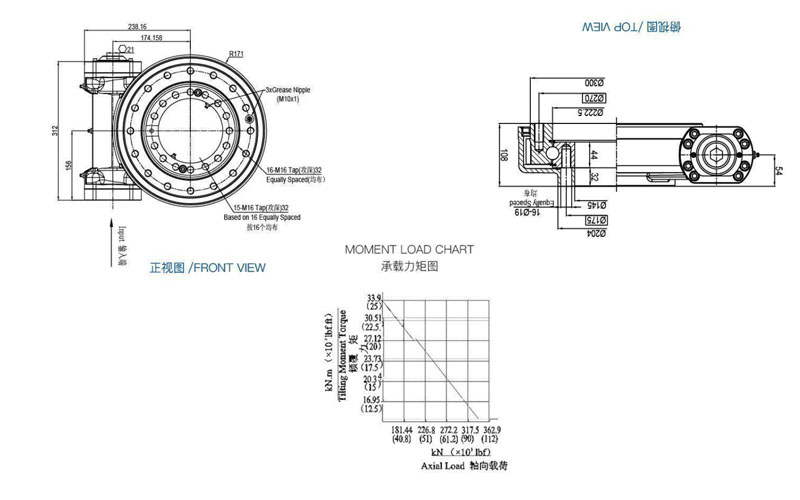

Below are the product parameters and drawings for the SEA9 slewing drive.

Slewing drive performance parameters
Output Torque	Tilting Moment Torque	Holding Torque	Axial Load	Radial Load	Ratio	Backlash	Weight
6.5 kN.m	33.9 kN.m	40 kN.m	340 kN	138 KN	61:1	≤0.17°	49kg
4794 I bf.ft	25*10³ I bf.ft	29.5*10³ I bf.ft	76.4*10³ Ibf	31*10³ Ibf	61:1	≤0.17°	49kg

Selecting the SEA9 means investing in more than just a component; it's a commitment to reliability. You benefit from reduced downtime, lower maintenance costs, and a solution that is engineered to perform under pressure. As a trusted slewing bearing manufacturer, we control the entire production process, guaranteeing quality from raw material to final assembly.

Ready to power your next project with precision and reliability?
Contact our engineering team today to discuss your application requirements and receive a custom quote for the SEA9 Slewing Drive. Let us help you build something stronger.

Tags: Slewing Drive Manufacturer
