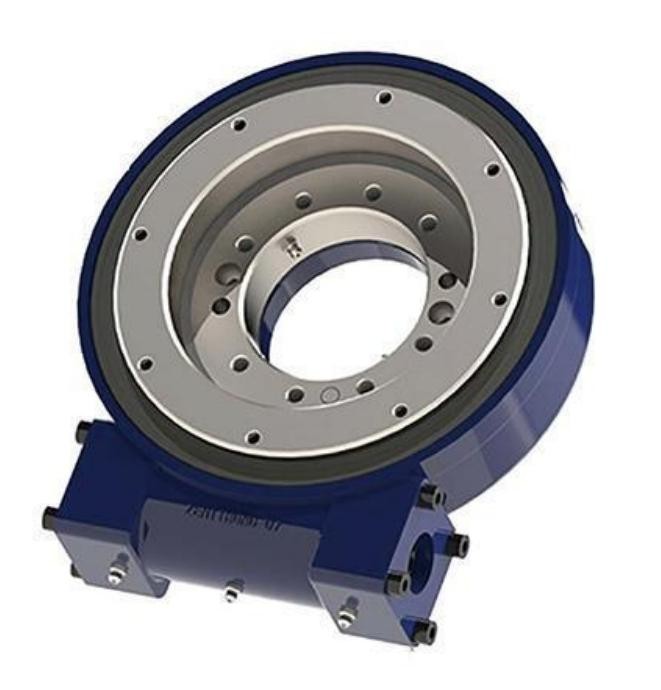

SEA7 Slewing Drive

Product Item : SEA7
Category： Slewing Drive
Enhanced Torque Output
Superior Load Capacity
Integrated Braking Function
Comprehensive Protection
INQUIRY EMAIL

The slewing drive consists of a worm gear mechanism, metal ball bearing assembly, rubber seals, and a sturdy housing to prevent environmental factors such as dust, water, and debris from damaging the drive's working components.
The working principle of the driven drive is exactly the same as that of a worm gear reducer. When the worm rotates, it converts the rotational motion along its axis into rotational motion along a perpendicular axis. As a result, the driven component—the worm—exhibits a reduction in speed and a proportional increase in torque from the worm wheel. The output speed of the worm wheel depends on the ratio of the threads on the worm to the number of teeth on the worm wheel.
Due to their ability to withstand (and maintain) loads and provide high rotational torque, slewing drives are used in many industries.

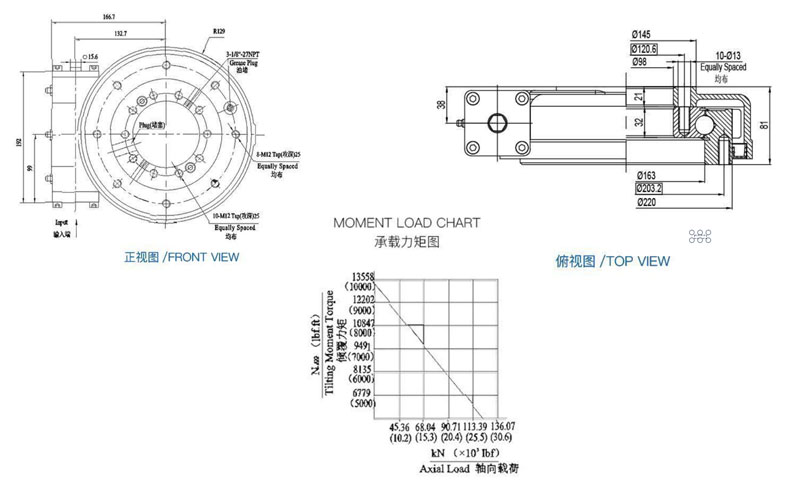

Below are the product parameters and drawings of the SEA7 slewing drive.

Slewing drive performance parameters
Output Torque	Tilting Moment Torque	Holding Torque	Axial Load	Radial Load	Ratio	Backlash	Weight
1500 kN.m	13500 kN.m	10600 kN.m	135 KN	53 kN	73:1	≤0.20°	24kg
1107 I bf.ft	9957 I bf.ft	7822 I bf.ft	30348 Ibf	11915 Ibf	73:1	≤0.20°	24kg
