Upper Half of 010 Series Single-Row Four-Point Contact Ball Slewing Bearing

Product Item : 010.20.200,010.20.224,010.20.250,010.20.280
Category： Slewing Bearing
100% replace original part
China factory direct supply,competitive price
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

The single row four point contact ball slewing bearing iscomposed of two seat ringS, which design in compactstructure and light weight, steel ball contact with the circularraceway at four point, it can bear the axial force, radial forceand the tilting moment at the same time.It can be used for slewing conveyer, welding manipulator,light & medium duty crane,excavator, and other constructionmachinery.

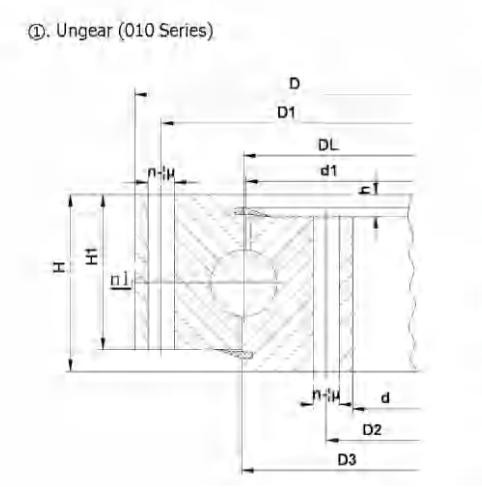

010 Series Single-Row Four-Point Contact Ball Slewing Bearing - Detailed Parameters

NO.	Non gear DL mm	Dimensions			Mounting Dimensions						Structural Dimension					Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	n1	D3 mm	d1 mm	H1 mm	h mm
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	n1	D3 mm	d1 mm	H1 mm	h mm
1	010.20.200	280	120	60	248	152	12	16	M14	28	2	201	199	50	10	20
2	010.20.224	304	144	60	272	176	12	16	M14	28	2	225	223	50	10	22
3	010.20.250	330	170	60	298	202	18	16	M14	28	2	251	249	50	10	25
4	010.20.280	360	200	60	328	232	18	16	M14	28	2	281	279	50	10	28
5	010.25.315	408	222	70	372	258	20	18	M16	32	2	316	314	60	10	44
6	010.25.355	448	262	70	412	298	20	18	M16	32	2	356	354	60	10	49
7	010.25.400	493	307	70	457	343	20	18	M16	32	2	401	399	60	10	56
8	010.25.450	543	357	70	507	393	20	18	M16	32	2	451	449	60	10	62
9	010.30.500	602	398	80	566	434	20	18	M16	32	4	501	498	70	10	85
9'	010.25.500	602	398	80	566	434	20	18	M16	32	4	501	499	70	10	85
10	010.30.560	662	458	80	626	494	20	18	M16	32	4	561	558	70	10	95
10'	010.25.560	662	458	80	626	494	20	18	M16	32	4	561	559	70	10	95
11	010.30.630	732	528	80	696	564	24	18	M16	32	4	631	628	70	10	110
11'	010.25.630	732	528	80	696	564	24	18	M16	32	4	631	629	70	10	110
12	010.30.710	812	608	80	776	644	24	18	M16	32	4	711	708	70	10	120
12'	010.25.710	812	608	80	776	644	24	18	M16	32	4	711	709	70	10	120
13	010.40.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	220
13'	010.30.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	220
14	010.40.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	240
14	010.30.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	240

Note:
1. n1 is the nos of lubricating holes.Oil cupM10x1JB/T7940.1~JB/7940.2.The Oil nipple's location can be change according to the user's application.
2.n- φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3, The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. "k" is addendum reduction coefficient.

Click for Lower Half of 010 Series Single-Row Four-Point Contact Ball Slewing Bearing
