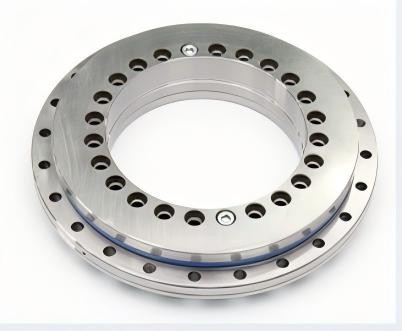

YRT120 Precision Rotary Table Bearing

Product Item : YRT120
Category： Large-sized Bearings
Axial and Radial Run‑Out≤3 μm
Precision Grade: P4 / P2 ultra-precision optional
Weight: 5.3 kg
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

Continuing our YRT series lineup after YRT50, YRT80 and YRT100, the YRT120 is the next‑size axial‑radial combined rotary table bearing for medium‑large precision rotary unitsZYS.

It adopts proven three‑row roller construction: two rows of axial cylindrical rollers plus one row of radial cylindrical rollers. Factory pre‑loaded to eliminate internal clearance, delivering high rotational accuracy and strong tilting stiffness.

Key Technical Specifications

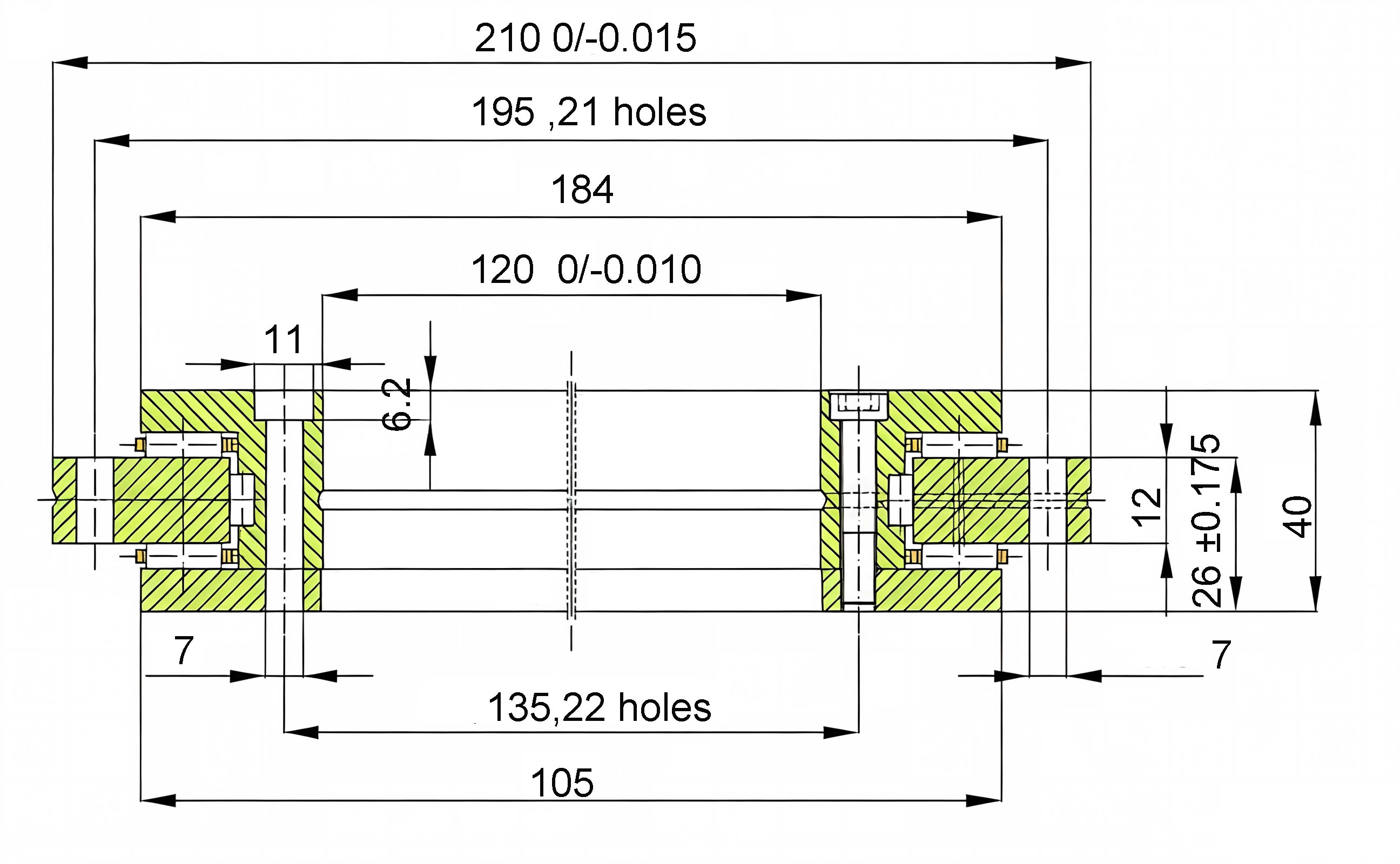

Inner Diameter: 120 mm | Outer Diameter: 210 mm | Overall Height: 40 mm
Weight: 5.3 kg
Axial and Radial Run‑Out≤3 μm
Precision ClassP5 / P4 / P2
Precision Grade: Standard P4, optional ultra‑precision P2
Limiting speed: 340 rpm
We provide full dimension inspection reports before shipment. Reach out for custom precision requirements and volume order support.
info@dpmachinery.com
Whatsapp: 008615366795302
