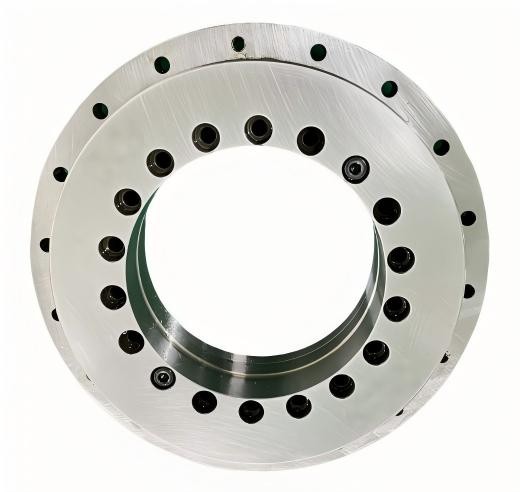

YRT100 Three Row Roller Rotary Table Bearing

Product Item : YRT100
Category： Large-sized Bearings
Axial and Radial Run‑Out≤3 μm
Weight: 4.1 kg
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

YRT100 is a popular size within YRT series combined axial‑radial turntable bearings, engineered for heavier workpiece loading compared to smaller YRT50 and YRT80 models. Factory‑built pre‑load eliminates internal clearance, delivering outstanding tilting stiffness under combined bidirectional axial force, radial force and heavy overturning moments.

Key Technical Specifications

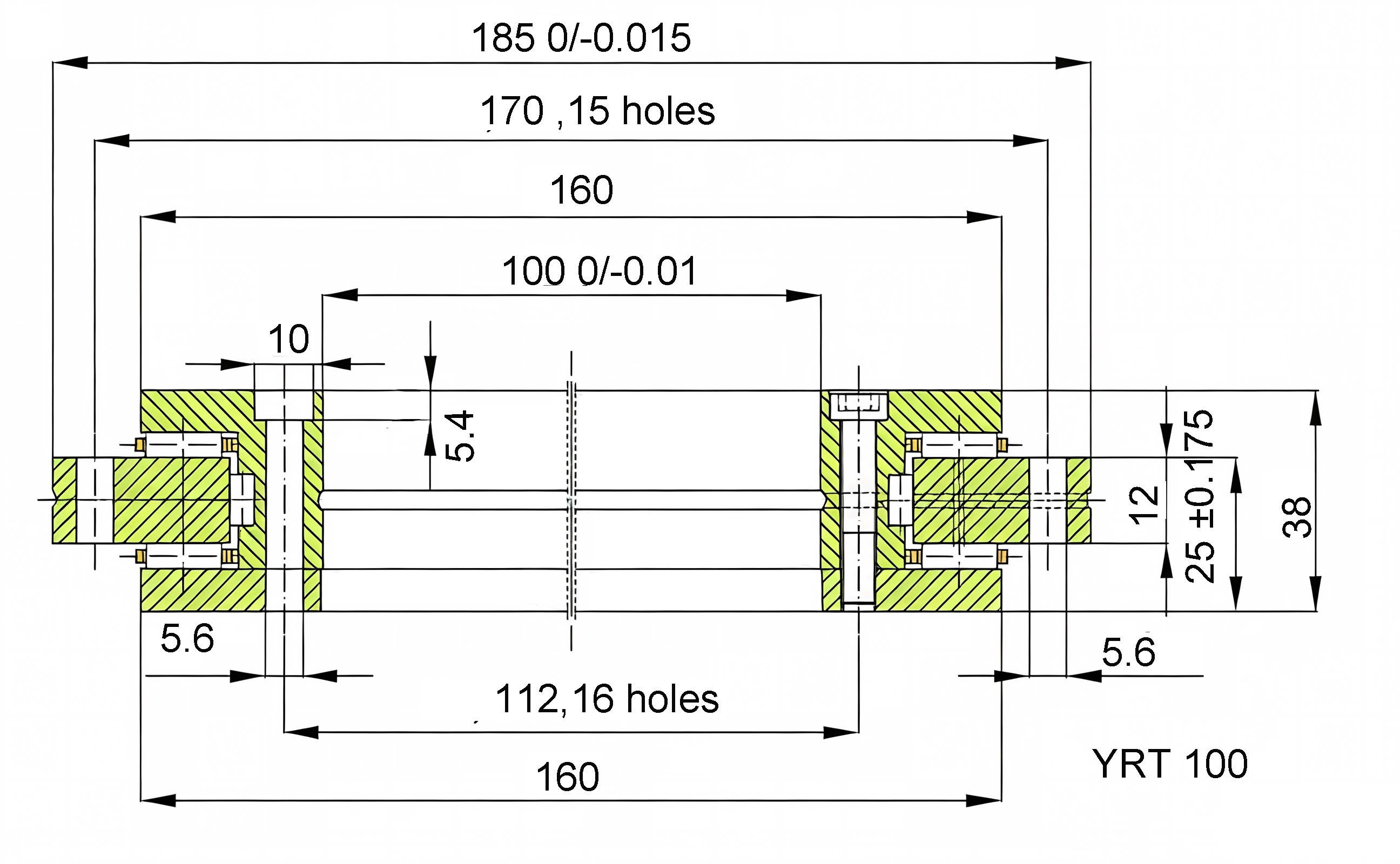

Inner Diameter: 100 mm | Outer Diameter: 185 mm | Overall Height: 38 mm
Weight: 4.1 kg
Axial and Radial Run‑Out≤3 μm
Precision Grade: Standard P4, optional ultra‑precision P2
Limiting grease speed: 430 r/min
Static axial load: 415 kN | Static radial load:120 kN
We provide full dimension inspection reports before shipment. Reach out for custom precision requirements and volume order support.
