YRT80 Rotary Table Bearing

Product Item : YRT80
Category： Large-sized Bearings
Axial and Radial Run‑Out≤3 μm
Weight: 2.4 kg
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

YRT80 Rotary Table Bearing
YRT80 is a widely‑used pre‑mounted three‑row cylindrical roller turntable bearing, purpose‑built to cope with combined bidirectional axial loads, radial forces and heavy overturning moments in compact precision rotary assemblies.

Key Technical Data

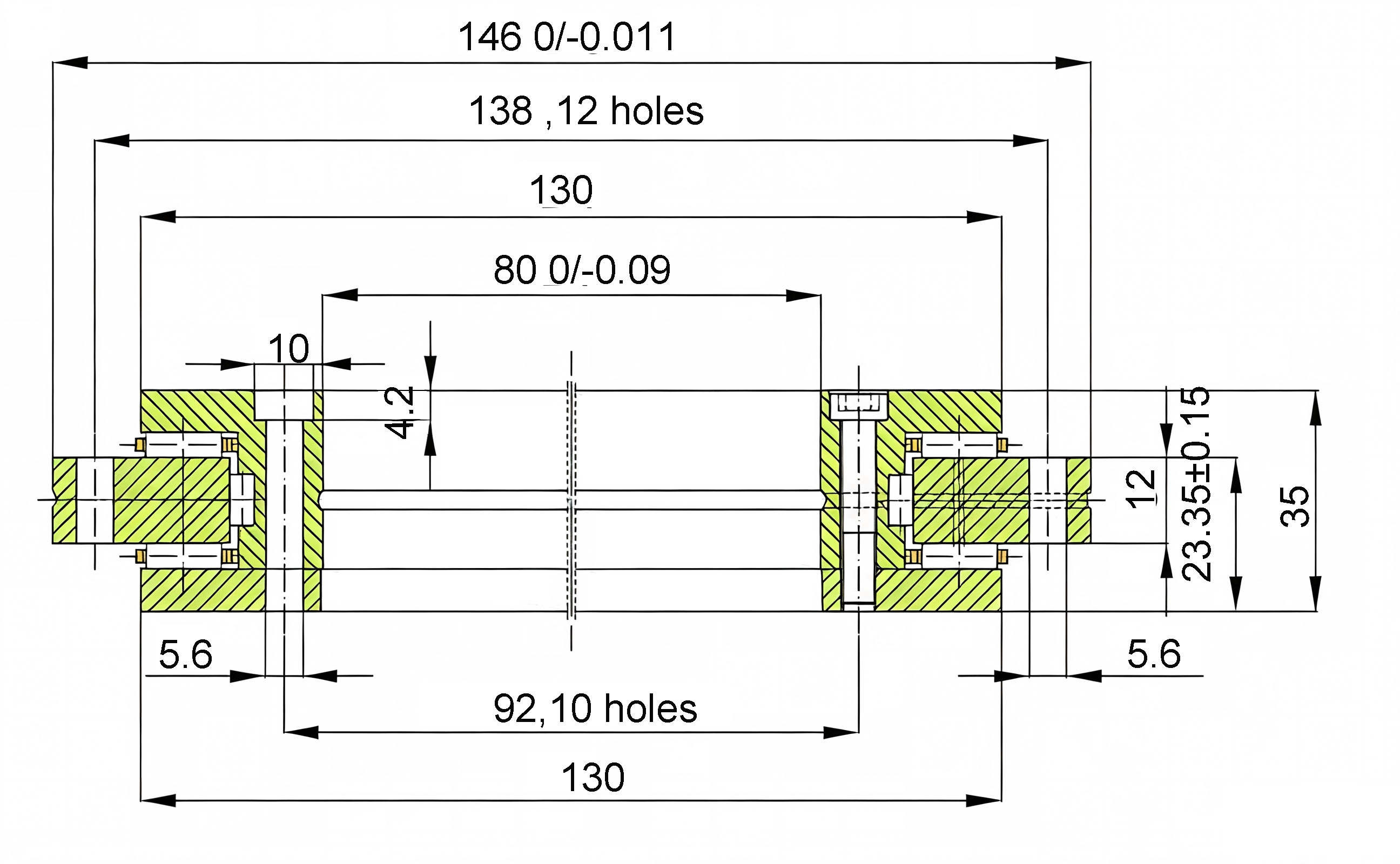

Inner diameter: 80 mm | Outer diameter: 146 mm | Height: 35 mm
Weight: 2.4 kg
Axial and Radial Run‑Out≤3 μm
Precision Grade: P4 standard, P2 ultra‑precision optional
Limiting grease speed: 530 r/min
Static axial load: 255 kN | Static radial load: 100 kN
Frictional torque tested at 5 rpm, strictly controlled for smooth low‑stick rotation
We provide full dimension inspection reports before shipment. Reach out for custom precision requirements and volume order support.
info@dpmachinery.com
Whatsapp: 008615366795302
