External Gear 011.012 Series Single-Row Four-Point Contact Ball Slewing Bearing-Part 3

Product Item : 011.60.2500,012.60.2500,011.40.2500,012.40.2500
Category： Slewing Bearing
100% replace original part
China factory direct supply,competitive price
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

011.012 Series Single-Row Four-Point Contact Ball Slewing Bearing - Part 3 Detailed Parameters

The single row four point contact ball slewing bearing iscomposed of two seat ringS, which design in compactstructure and light weight, steel ball contact with the circularraceway at four point, it can bear the axial force, radial forceand the tilting moment at the same time.It can be used for slewing conveyer, welding manipulator,light & medium duty crane,excavator, and other constructionmachinery.

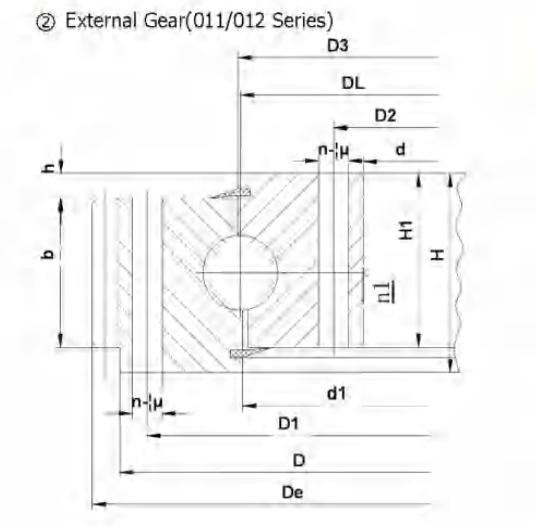

NO.	Non gear DL mm	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					Tooth force		Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	n1	D3 mm	d1 mm	H1 mm	h mm	b mm	x	M mm	De mm	z	Norm alizing Z10 4N	Quenching T10 4N

23	011.60.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2502	2498	132	12	120	0.5	18	2768.4	151	27.1	37.5	1400
	012.60.2500																	20	2776	136	30.1	41.8
23'	011.40.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2501	2498	132	12	120	0.5	18	2768.4	151	27.1	37.5	1400
	012.40.2500																	20	2776	136	30.1	41.8
24	011.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	120	0.5	18	3074.4	168	27.1	37.5	1600
	012.60.2800																	20	3076	151	30.1	41.8
24'	011.40.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	120	0.5	18	3074.4	168	27.1	37.5	1600
	012.40.2800																	20	3076	151	30.1	41.8
25	011.75.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	150	0.5	20	3476	171	37.7	52.2	2800
	012.75,3150																	22	3471.6	155	41.5	57.4
25'	011.50.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	150	0.5	20	3476	171	37.7	52.2	2800
	012.50.3150																	22	3471.6	155	41.5	57.4
26	011.75.3550	3776	3322	174	3686	3014	56	45	M42	84	8	3552	3547	162	12	150	0.5	20	3876	191	37.7	51.7	3500
	012.75.3550																	22	3889.6	174	41.5	57
26"	011.50.3550	3776	3322	174	3686	3014	56	45	M42	84	10	3552	3548	162	12	150	0.5	20	3876	191	37.7	51.7	3500
	012.50.3550																	22	3889.6	174	41.5	57
27	011.75.4000	4226	3772	174	4136	3864	60	45	M42	84	10	4002	3997	162	12	150	0.5	22	4329.6	194	41.5	57	4200
	012.75.4000																	25	4345	171	47.1	64.6
27"	011.50.4000	4226	3772	174	4136	3864	60	45	M42	84	10	4002	3998	162	12	150	0.5	22	4329.6	194	41.5	57	4200
	012.50.4000																	25	4345	171	47.1	64.6
28	011.75.4500	4726	4272	174	4636	4364	60	45	M42	84	10	4502	4497	162	12	150	0.5	22	4835.6	217	41.5	57	5100
	012.75.4500																	25	4845	191	47.1	64.6
28"	011.50.4500	4726	4272	174	4636	4364	60	45	M42	84	10	4502	4498	162	12	150	0.5	22	4835.6	217	41.5	57	5100
	012.50.4500																	25	4845	191	47.1	64.6

Note:
1. n1 is the nos of lubricating holes.Oil cupM10x1JB/T7940.1~JB/7940.2.The Oil nipple's location can be change according to the user's application.
2.n- φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3, The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. "k" is addendum reduction coefficient.
