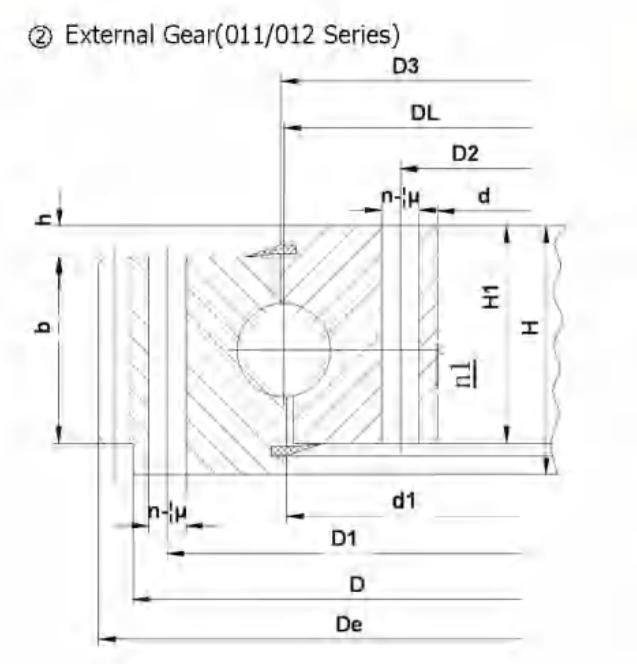

The single row four point contact ball slewing bearing iscomposed of two seat ringS, which design in compactstructure and light weight, steel ball contact with the circularraceway at four point, it can bear the axial force, radial forceand the tilting moment at the same time.It can be used for slewing conveyer, welding manipulator,light & medium duty crane,excavator, and other constructionmachinery.
Note:
NO.
Non gear
DL
mm
Dimensions
Mounting Dimensions
Structural Dimension
Gear data
Tooth force
Weight
kg
D
mm
d
mm
H
mm
D1
mm
D2
mm
n
Ø
mm
dm
mm
L
mm
n1
D3
mm
d1
mm
H1
mm
h
mm
b
mm
x
M
mm
De
mm
z
Norm alizing Z10 4N
Quenching
T10 4N
1
011.20.200
280
120
60
248
152
12
16
M14
28
2
201
199
50
10
40
0
3
300
98
1.5
2.1
24
2
011.20.224
304
144
60
272
176
12
16
M14
28
2
225
223
50
10
40
0
3
321
105
1.5
2.1
25
3
011.20.250
330
170
60
298
202
18
16
M14
28
2
251
249
50
10
40
0
4
352
86
2.1
2.8
30
4
011.20.280
360
200
60
328
232
18
16
M14
28
2
281
279
50
10
40
0
4
384
94
1.5
2.8
34
5
011.25.315
408
222
70
372
258
20
18
M16
32
2
316
314
60
10
50
0
5
435
85
2.9
4.4
52
6
011.25.355
448
262
70
412
298
20
18
M16
32
2
356
354
60
10
50
0
5
475
93
2.9
4.4
59
7
011.25.400
493
307
70
457
343
20
18
M16
32
2
401
399
60
10
50
0
6
528
86
3.5
5.3
69
8
011.25.450
543
357
70
507
393
20
18
M16
32
2
451
449
60
10
50
0
6
576
94
3.5
5.3
76
9
011.30.500
602
398
80
566
434
20
18
M16
32
4
501
498
70
10
60
0.5
5
629
123
3.7
5.2
85
012.30.500
6
628.8
102
4.5
6.2
9'
011.25.500
602
398
80
566
434
20
18
M16
32
4
501
499
70
10
60
0.5
5
629
123
3.7
5.2
85
012.25.500
6
628.8
102
4.5
6.2
10
011.30.560
662
458
80
626
494
20
18
M16
32
4
561
558
70
10
60
0.5
5
689
135
3.7
5.2
95
012.30.560
6
688.8
112
4.5
6.2
10
011.25.560
662
458
80
626
494
20
18
M16
32
4
561
559
70
10
60
0.5
5
689
135
3.7
5.2
95
012.25.560
6
688.8
112
4.5
6.2
11
011.30.630
732
528
80
696
564
24
18
M16
32
4
631
628
70
10
60
0.5
6
772.8
126
4.5
6.2
110
012.30.630
8
774.4
94
6
8.3
11'
011.25.630
732
528
80
696
564
24
18
M16
32
4
631
629
70
10
60
0.5
6
772.8
126
4.5
6.2
110
012.25.630
8
774.4
94
6
8.2
12
011.30.710
812
608
80
776
644
24
18
M16
32
4
711
708
70
10
60
0.5
6
850.8
139
4.5
6.2
120
012.30.710
8
854.4
104
6
8.3
12'
011.25.710
812
608
80
776
644
24
18
M16
32
4
711
709
70
10
60
0.5
6
850.8
139
4.5
6.2
120
012.25.710
8
854.4
104
6
8.9
13
011.40.800
922
678
100
878
722
30
22
M20
40
6
801
798
90
10
80
0.5
8
966.4
118
8
11.1
220
012.40.800
10
968
94
10
14
13
011.40.800
922
678
100
878
722
30
22
M20
40
6
801
798
90
10
80
0.5
8
966.4
118
8
11.1
220
012.40.800
10
968
94
10
14
13'
011.30.800
922
678
100
878
722
30
22
M20
40
6
801
798
90
10
80
0.5
8
966.4
118
8
11.1
220
012.30.800
10
968
94
10
14.1
14
011.40.900
1022
778
100
978
822
30
22
M20
40
6
901
898
90
10
80
0.5
8
1062.4
130
8
11.1
240
012.40.900
10
1068
104
10
14
14'
011.30.900
1022
778
100
978
822
30
22
M20
40
6
901
898
90
10
80
0.5
8
1062.4
130
8
11.1
240
012.30.900
10
1068
104
10
14
15
011.40.1000
1122
878
100
1078
922
36
22
M20
40
6
1001
998
90
10
80
0.5
10
1188
116
10
14
270
012.40.1000
12
1185.6
96
12
16.7
15'
011.30.1000
1122
878
100
1078
922
36
22
M20
40
6
1001
998
90
10
80
0.5
10
1188
116
10
14
270
012.30.1000
12
1185.6
96
12
16.7
1. n1 is the nos of lubricating holes.Oil cupM10x1JB/T7940.1~JB/7940.2.The Oil nipple's location can be change according to the user's application.
2.n- φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3, The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. "k" is addendum reduction coefficient.
