Lower Half of Ungear 010 Series Single-Row Four-Point Contact Ball Slewing Bearing

Product Item : 010.25.450,010.30.500,010.25.500
Category： Slewing Bearing
100% quality assurance
China factory direct supply,competitive price
Dimensional same as original part
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

The single row four point contact ball slewing bearing iscomposed of two seat ringS, which design in compactstructure and light weight, steel ball contact with the circularraceway at four point, it can bear the axial force, radial forceand the tilting moment at the same time.It can be used for slewing conveyer, welding manipulator,light & medium duty crane,excavator, and other constructionmachinery.

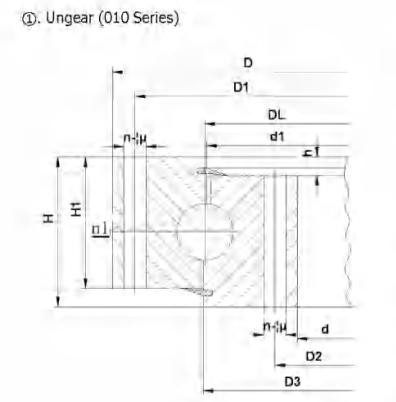

010 Series Single-Row Four-Point Contact Ball Slewing Bearing - Detailed Parameters

NO.	Non gear DL mm	Dimensions			Mounting Dimensions						Structural Dimension					Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	n1	D3 mm	d1 mm	H1 mm	h mm
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	n1	D3 mm	d1 mm	H1 mm	h mm
15	010.40.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	270
15	010.30.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	270
16	010.40.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	300
16	010.30.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	300
17	010.45.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1252	1248	100	10	420
17	010.35.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1251	1248	100	10	420
18	010.45.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1402	1398	100	10	480
18′	010.35.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1401	1398	100	10	480
19	011.45.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1602	1598	100	10	550
19'	010.35.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1601	1598	100	10	550
20	010.45.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1802	1798	100	10	610
20'	010.35.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1801	1798	100	10	610
21	010.60.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2002	1998	132	12	1100
21'	010.40.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2001	1998	132	12	1100
22	010.60.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2242	2238	132	12	1250
22′	010.40.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2241	2238	132	12	1250
23	010.60.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2502	2498	132	12	1400
23'	010.40.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2501	2498	132	12	1400
24	010.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	1600
24'	010.40.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	1600
25	010.75.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	2800
25'	010.50.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	2800
26	010.75.3550	3776	3322	174	3686	3014	56	45	M42	84	8	3552	3547	162	12	3500
26	010.50.3550	3776	3322	174	3686	3014	56	45	M42	84	10	3552	3548	162	12	3500
27	010.75.4000	4226	3772	174	4136	3864	60	45	M42	84	10	4002	3997	162	12	4200
27'	010.50.4000	4226	3772	174	4136	3864	60	45	M42	84	10	4002	3998	162	12	4200
28	010.75.4500	4726	4272	174	4636	4364	60	45	M42	84	10	4502	4497	162	12	5100
28'	010.50.4500	4726	4272	174	4636	4364	60	45	M42	84	10	4502	4498	162	12	5100

Note:
1. n1 is the nos of lubricating holes.Oil cupM10x1JB/T7940.1~JB/7940.2.The Oil nipple's location can be change according to the user's application.
2.n- φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3, The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. "k" is addendum reduction coefficient.

Click for Upper Half of010 Series Single-Row Four-Point Contact Ball Slewing Bearing
