Detailed Introduction of Cylindrical Roller Bearing Series Models 89317M, 87417, etc

Product Item : 89416, 89317M, 87417, 89317, 89417, 87418, 89318
Category： Large-sized Bearings
cylindrical roller bearing
Competitive factory direct price
Supported (non-standard size, tolerance, cage material, lubrication method, etc.)
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

Cylindrical roller bearings are a common type of rolling bearing, widely used in various mechanical equipment due to their high radial load capacity, good rigidity and relatively simple structure. The series products introduced this time include 89416, 89317M, 87417, 89317, 89417, 87418, 89318, 89418 and other models, covering cylindrical roller bearings of different sizes and specifications to meet diverse industrial needs.

Product Parameters

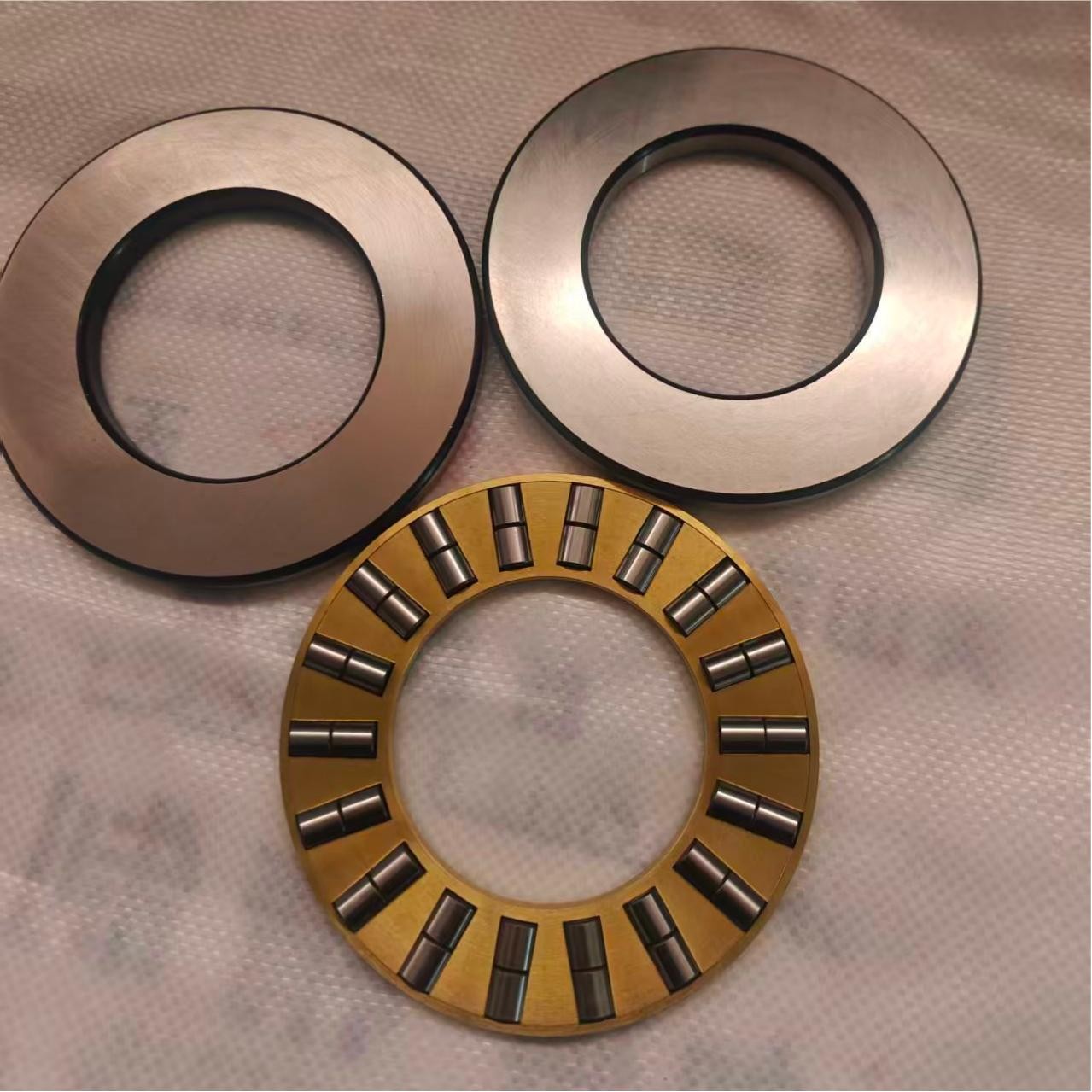

Thrust cylindrical roller bearing
Bearing type	Boundary dimenslon(mm)			Speed Rating(lpm)		Laad Rating (kn)		Welght (kg)
Bearing type	ID	OD	T	Grease lubrilcatlion	Ou lubricatlion	Dynamlc Cr	Static Cor	Welght (kg)
89416	80	170	54		1900	560	1770	6.41
89317M	80	150	39					3.39
87417	85	180	42		1800	485	1920	5.53
89317	85	150	39		2000	325	1140	3
89417	85	180	58		1800	620	1980	7.55
87418	90	190	45		1700	510	2090	6.65
89318	90	155	39		1900	330	1200	3.28
89418	90	190	60		1700	680	2200	8.77
89318M	90	155	39					3.63
87420	100	210	50		1500	680	2800	9.02
89320	100	170	42		1700	380	1400	4.19
89420	100	210	67		1500	850	2350	11.9
89320M	100	172	42					4.56
89422	110	230	73		1400	1000	3400	15.6
89322	110	190	48		1600	500	1870	6.03
89322M	110	190	48					6.7
89324	120	210	54		1400	640	2420	8.52
89324M	120	210	54					9.44
89326	130	225	58		1300	710	2700	10
89426	130	270	85		1200	1330	4600	24
89328	140	240	60		1200	820	3200	11.99
89428	140	280	85		1100	1380	4950	27.2
81228M	140	200	46					5.07
89330	150	250	60		1200	840	3350	12.63
89430	150	300	90		1000	1570	5700	32.1
81230M	150	215	50					7.17
81332	160	225	51		1200	600	2030	6.203
81232M	160	225	51					7.6
89434	170	340	103		900	1990	7400	47.2

Whether you need thrust bearings to bear heavy loads or radial bearings for high-speed operation, our product series can meet your needs.
For more detailed technical parameters, dimension drawings or pricing information of specific models, please contact us. Our technical team is ready to provide you with professional selection support and technical consultation.
