China Direct Factory Supply 812 / 811 / 894 Series Thrust Cylindrical Roller Bearings

Product Item : 81234M,89436,81136M,81236M,89438,81238M
Category： Large-sized Bearings
Thrust Cylindrical Roller Bearings
Competitive factory direct price
Supported (non-standard size, tolerance, cage material, lubrication method, etc.)
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

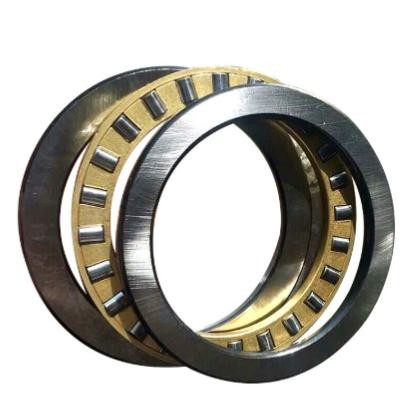

Thrust cylindrical roller bearings are designed to withstand single-direction heavy axial loads.They feature extremely high axial rigidity, with separable rolling elements and washers for easy installation and maintenance.

Product Parameters

Thrust cylindrical roller bearing
Bearing type	Boundary dimenslon(mm)				Load Rating(kn)		Welght (kg)
Bearing type	ID	OD	H	Oll lubricatlion	Dynamic Cr	Statie Cor	Welght (kg)
81234M	170	240	55				9.3
89436	180	360	109	850	2210	8200	54.8
81136M	180	225	34				3.3
81236M	180	250	56				9.9
89438	190	380	115	800	2450	9200	65.7
81238M	190	270	62				12.8
89440	200	400	122	750	2700	10200	74.8
91240	200	280	62		880	3000
81140M	200	250	37				4.95
81240M	200	280	62				14.2
81244M	200	300	63				15.3
81740	220	320	75				28
89444	220	420	122	750	2900	11500	82
81144M	220	270	37				5.22
81148M	240	300	45				8.45
81248M	240	340	78				26.2
89452	260	480	132	650	3550	14600	114
81152M	260	320	45				9.08
81252M	260	360	79				28.6
89456	280	520	145	600	4200	17400	142
81156M	280	350	53				12.6
81256M	280	380	80				31
81160M	300	380	62				19.4
81260M	300	420	95				48.25
81164M	320	400	63				20.7

Choosing thrust cylindrical roller bearings means pursuing three core indicators:extreme axial load capacity, high rigidity, and maintainability.We offer both standard products and customized solutions.Contact us for more details.
