One-stop selection for 22207-22260 full series spherical roller bearings

Product Item : 22207,22208,22209,22210,22211,22212
Category： Large-sized Bearings
High quality spherical roller bearing
Competitive factory direct price
Supported (non-standard size, tolerance, cage material, lubrication method, etc.)
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

As a core component for heavy-duty rotation, the size coverage and working condition adaptation depth of spherical roller bearings directly affect equipment stability. This series includes a total of 29 standard models from 22207 (inner diameter 35mm) to 22260 (inner diameter 300mm), constructing a full-size product matrix covering light, medium, heavy, and extra-heavy loads.

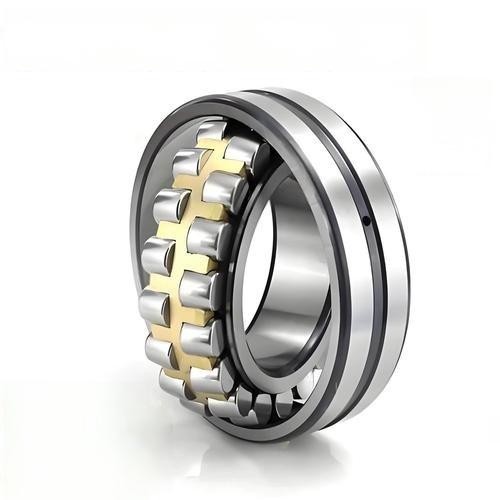

All bearings in this series adopt a structure of double-row spherical rollers + spherical outer ring raceways, with adaptive self-aligning capability, which can effectively compensate for shaft deflection, installation errors, and seat hole deformation. Whether it is a fan rotating at thousands of revolutions per minute or a low-speed and heavy-duty metallurgical rolling mill, a matching solution can be provided.

Product Models and Technical Parameters

Spherical Roller Bearing
Bearing type	Boundary dimenslon(mm)			Speed Rating(lpm)		Rated Load		Welght (kg)
Bearing type	ID	OD	H	Grease lubrikcation	ol lubricatlion	Dynamic Load	Static Load	Welght (kg)
22207	35	72	23	5700	7600	69	79	0.448
22208	40	80	23	5100	6800	81	94	0.538
22209	45	85	23	4800	6400	85	100	0.59
22210	50	90	23	4400	5900	87	108	0.63
22211	55	100	25	4050	5350	105	129	0.83
22212	60	110	28	3600	4800	126	160	1.2
22213	65	120	31	3300	4500	155	201	1.6
22214	70	125	31	3150	4250	163	211	1.76
22215	75	130	31	3000	4000	167	222	1.85
22216	80	140	33	2800	3700	180	245	2.1
22217	85	150	36	2600	3500	216	286	2.75
22218	90	160	40	2450	3250	247	332	3.5
22219	95	170	43	2400	3200	286	391	4.2
22220	100	180	46	2200	3000	319	438	4.9
22222	110	200	53	2000	2700	417	592	7.5
22224	120	215	58	1900	2500	484	698	8.5
22226	130	230	64	1500	2300	567	834	11.3
22228	140	250	68	1600	2200	647	958	14.6
22230	150	270	73	1500	2000	760	1130	18.45
22232	160	260	80	1300	1800	850	1280	23
22234	170	310	86	1200	1700	975	1500	28.5
22236	180	320	86	1200	1600	1010	1590	30
22238	190	320	92	1100	1500	1150	1700	35.8
22240	200	360	98	1000	1400	1290	1910	47
22244	220	440	108	900	1200	1560	2280	61.8
22248	240	440	120	700	900	1500	2700	85
22252	260	480	130	650	830	1400	3100	106
22256	280	500	130	600	780	1740	3480	113.1
22260	300	540	140	600	750	2100	4200	134.9

We provide standard products and customized solutions. Welcome to contact us for more details.
