Internal Gear 013.014 Series Single-Row Four-Point Contact Ball Slewing Bearing - Part 3

Product Item : 013.60.2000
Category： Slewing Bearing
100% replace original part
Single row ball slewing ring
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

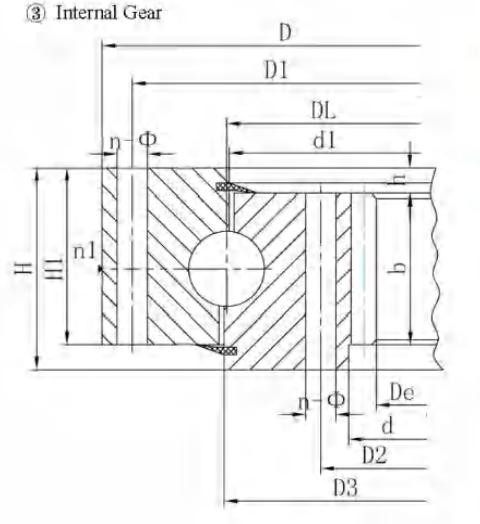

The single row four point contact ball slewing bearing is composed of two seat rings, which design in compact structure and light weight, steel ball contact with the circular raceway at four point, it can bear the axial force, radial forceand the tilting moment at the same time.It can be used for slewing conveyer, welding manipulator,light & medium duty crane, excavator, and other construction machinery.

NO.	Internal gear DL mm	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					Tooth force		Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	n1	D3 mm	d1 mm	H1 mm	h mm	b mm	x	M mm	De mm	z	Norm alizing Z10 4N	Quenching T10 4N

17	013.60.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2002	1998	132	12	120	0.5	16	1734	109	24.1	33.3	1100
	014.60.2000																	18	1735	97	27.1	37.5
17'	013.40.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2001	1998	132	12	120	0.5	16	1734	109	24.1	33.3	1100
	014.40.2000																	18	1735	97	27.1	37.5
18	013.60.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2242	2238	132	12	120	0.5	16	1990	125	24.1	33.3	1250
	014.60.2240																	18	1987	111	27.1	37.5
18'	013.40.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2241	2238	132	12	120	0.5	16	1990	125	24.1	33.3	1250
	014.40.2240																	18	1987	111	27.1	37.5
19	013.60.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2502	2498	132	12	120	0.5	18	2239	125	27.1	37.5	1400
	014.60.2500																	20	2228	112	30.1	41.8
19'	013.40.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2501	2498	132	12	120	0.5	18	2239	125	27.1	37.5	1400
	014.40.2500																	20	2228	112	30.1	41.8
20	013.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	120	0.5	18	2527	141	27.1	37.5	1600
	014.60.2800																	20	2528	127	30.1	41.8
20'	013.40.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	120	0.5	18	2527	141	27.1	37.5	1600
	014.40.2800																	20	2528	127	30.1	41.8
21	013.75.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	150	0.5	20	2828	142	37.7	52.2	2800
	014.75.3150																	22	2825	129	41.5	57.4
21	013.50.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	150	0.5	20	2828	142	37.7	52.2	2800
	014.50.3150																	22	2825	129	41.5	57.4
22	013.75.3550	3776	3322	174	3686	3014	56	45	M42	84	8	3552	3547	162	12	150	0.5	20	3228	162	37.7	51.7	3500
	014.75.3550																	22	3221	147	41.5	57
22'	013.50.3550	3776	3322	174	3686	3014	56	45	M42	84	10	3552	3548	162	12	150	0.5	20	3228	162	37.7	51.7	3500
	014.50.3550																	22	3221	147	41.5	57
23'	013.75.4000	4226	3772	174	4136	3864	60	45	M42	84	10	4002	3997	162	12	150	0.5	22	3661	167	41.5	57	4200
	014.75.4000																	25	3660	147	47.1	64.6
23'	013.50.4000	4226	3772	174	4136	3864	60	45	M42	84	10	4002	3998	162	12	150	0.5	22	3661	167	41.5	57	4200
	014.50.4000																	25	3660	147	47.1	64.6
24	013.75.4500	4726	4272	174	4636	4364	60	45	M42	84	10	4502	4497	162	12	150	0.5	22	4167	190	41.5	57	5100
	014.75.4500																	25	4160	167	47.1	64.6
24'	013.50.4500	4726	4272	174	4636	4364	60	45	M42	84	10	4502	4498	162	12	150	0.5	22	4167	190	41.5	57	5100
	014.50.4500																	25	4160	167	47.1	64.6

Note:
1. n1 is the nos of lubricating holes.Oil cupM10x1JB/T7940.1~JB/7940.2.The Oil nipple's location can be change according to the user's application.
2.n- φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3, The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.

4. "k" is addendum reduction coefficient.
