Internal Gear 013.014 Series Single-Row Four-Point Contact Ball Slewing Bearing - Part 1

Product Item : 013.014 Series
Category： Slewing Bearing
100% replace original part
Single row ball slewing ring
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

The single row four point contact ball slewing bearing is composed of two seat rings, which design in compact structure and light weight, steel ball contact with the circular raceway at four point, it can bear the axial force, radial forceand the tilting moment at the same time.It can be used for slewing conveyer, welding manipulator,light & medium duty crane, excavator, and other construction machinery.

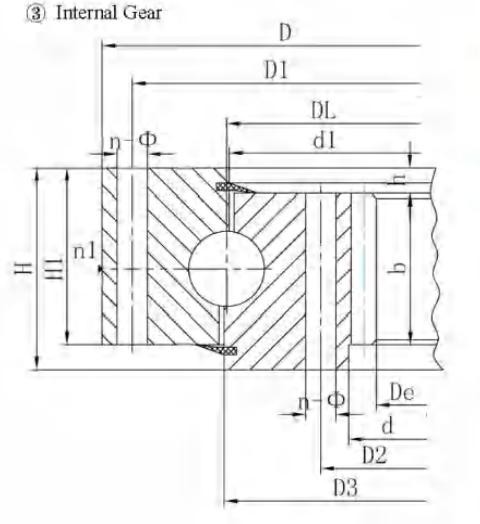

NO.	Internal gear DL mm	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					Tooth force		Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	n1	D3 mm	d1 mm	H1 mm	h mm	b mm	x	M mm	De mm	z	Norm alizing Z10 4N	Quenching T10 4N

1	013.25.315	408	222	70	372	258	20	18	M16	32	2	316	314	60	10	50	0	5	190	40	2.9	4.4	49
2	013.25.355	448	262	70	412	298	20	18	M16	32	2	356	354	60	10	50	0	5	235	49	2.9	4.4	54
3	013.25.400	493	307	70	457	343	20	18	M16	32	2	401	399	60	10	50	0	6	276	48	3.5	5.3	62
4	013.25.450	543	357	70	507	393	20	18	M16	32	2	451	449	60	10	50	0	6	324	56	3.5	5.3	71
5	013.30.500	602	398	80	566	434	20	18	M16	32	4	501	498	70	10	60	0.5	5	367	74	3.7	5.2	85
	014.30.500																	6	368.4	62	4.5	6.2
5'	013.25.500	602	398	80	566	434	20	18	M16	32	4	501	499	70	10	60	0.5	5	367	74	3.7	5.2	85
	014.25.500																	6	368.4	62	4.5	6.2
6	013.30.560	662	458	80	626	494	20	18	M16	32	4	561	558	70	10	60	0.5	5	427	86	3.7	5.2	95
	014.30.560																	6	428.4	72	4.5	6.2
6	013.25.560	662	458	80	626	494	20	18	M16	32	4	561	559	70	10	60	0.5	5	427	86	3.7	5.2	95
	014.25.560																	6	428.4	72	4.5	6.2
7	013.30.630	732	528	80	696	564	24	18	M16	32	4	631	628	70	10	60	0.5	6	494.4	83	4.5	6.2	110
	014.30.630																	8	491.2	62	6	8.3
7	013.25.630	732	528	80	696	564	24	18	M16	32	4	631	629	70	10	60	0.5	6	494.4	83	4.5	6.2	110
	014.25.630																	8	491.2	62	6	8.2
8	013.30.710	812	608	80	776	644	24	18	M16	32	4	711	708	70	10	60	0.5	6	572.4	96	4.5	6.2	120
	014.30.710																	8	571.2	72	6	8.3
8	013.25.710	812	608	80	776	644	24	18	M16	32	4	711	709	70	10	60	0.5	6	572.4	96	4.5	6.2	120
	014.25.710																	8	571.2	72	6	8.9
9	013.40.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	80	0.5	8	635.2	80	8	11.1	220
	014.40.800																	10	634	64	10	14
9	013.30.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	80	0.5	8	635.2	80	8	11.1	220
	014.30.800																	10	634	64	10	14.1

Note:
1. n1 is the nos of lubricating holes.Oil cupM10x1JB/T7940.1~JB/7940.2.The Oil nipple's location can be change according to the user's application.
2.n- φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3, The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.

4. "k" is addendum reduction coefficient.
