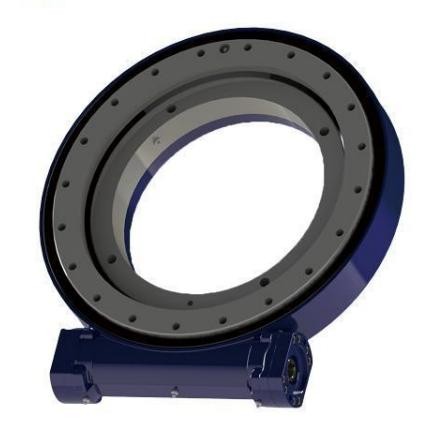

SEA19 Slewing Drive

Product Item : SEA19
Category： Slewing Drive
100% quality assurance
China factory direct supply,competitive price
Dimensional same as original part
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

A slewing drive, also known as a slewing reducer or gear-type reducer, is a modern type of rotary product composed of a worm gear (or pinion), slewing bearing, housing, motor, and other components. Its core utilizes a slewing bearing structure, enabling it to simultaneously withstand axial loads, radial loads, and overturning moments.
The SEA19 Slewing Drive is a medium-duty model within the SEA series of slewing reducers. It is a worm gear style slewing drive (characterized by low speed and high load capacity), and the worm gear mechanism provides a self-locking capability. It is primarily used in applications such as crane turntables, construction machinery slewing drives, and solar tracking equipment, where it can handle heavy-duty working conditions and achieve high-precision rotational movement.

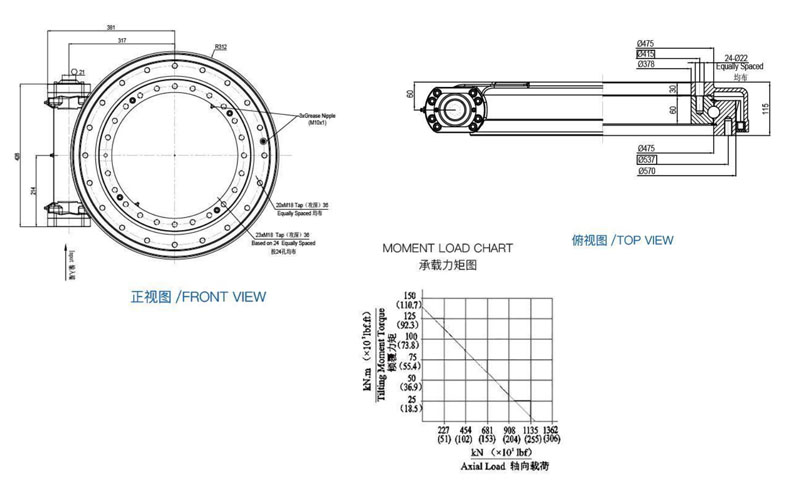

The product parameters and drawings for the SEA19 slewing drive are as follows.

Slewing drive performance parameters
Output Torque	Tilting Moment Torque	Holding Torque	Axial Load	Radial Load	Ratio	Backlash	Weight
14.4 kN.m	151 kN.m	63.5 kN.m	1460 kN	610kN.m	116:1	0.17°	125
10620 Ibf.ft	111.3*10³ Ibf.ft	46.8*10³ Ibf.ft	327.8*10³ Ibf	140*10³ Ibf	116:1	0.17°	125
