Internal Gear 113/114 Series Single Row Crossed Roller Slewing Bearing-Part 1

Product Item : 113.25.500,114.25.500
Category： Slewing Bearing
100% replace original part
China factory direct supply,competitive price
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

The single row crossed roller slewing bearing is composed of two seat rings, which design incompact structure and light weight, the clearance is small when assembly, so need high precision.The roller are 1:1 cross arranged, it can bear the axial force, tilting moment and relatively largeradial force. It is widely used for hoisting, transportation, construction machinery, and the militaryproducts.

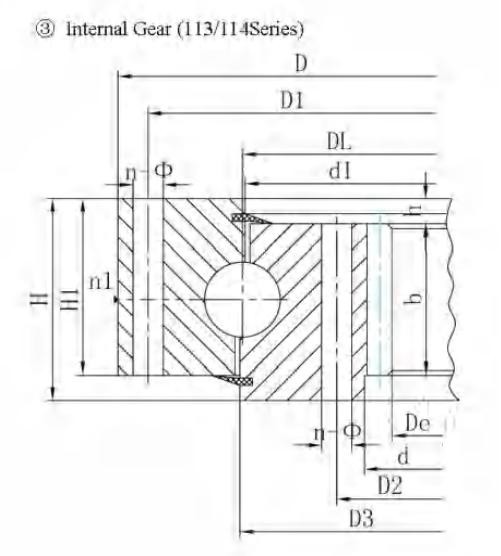

NO.	Internal gear DL mm	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					Tooth force		Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	n1	D3 mm	d1 mm	H1 mm	h mm	b mm	x	M mm	De mm	z	Norm alizing Z10 4N	Quenching T10 4N

1	113.25.500	602	398	75	566	434	20	18	M16	32	4	498	502	65	10	60	0.5	5	367	74	3.7	5.2	80
	114.25.500																	6	368.4	62	4.5	6.2
2	113.25.560	662	458	75	626	494	20	18	M16	32	4	558	562	65	10	60	0.5	5	427	86	3.7	5.2	90
	114.25.560																	6	428.4	72	4.5	6.2
3	113.25.630	732	528	75	696	564	24	18	M16	32	4	628	632	65	10	60	0.5	6	494.4	83	4.5	6.2	100
	114.25.630																	8	491.2	62	6	8.3
4	113.25.710	812	608	75	776	644	24	18	M16	32	4	708	712	65	10	60	0.5	6	572.4	96	4.5	6.2	110
	114.25.710																	8	571.2	72	6	8.3
5	113.28.800	922	678	82	878	722	30	22	M20	40	6	798	802	72	10	65	0.5	8	635.2	80	6.5	9.1	170
	114.28.800																	10	634	64	8.1	11.4
6	113.28.900	1022	778	82	978	822	30	22	M20	40	6	898	902	72	10	65	0.5	8	739.2	93	6.5	9.1	190
	114.28.900																	10	734	74	8.1	11.4
7	113.28.1000	1122	878	82	1078	922	36	22	M20	40	6	998	1002	72	10	65	0.5	10	824	83	8.1	11.4	210
	114.28.1000																	12	820.8	69	9.7	13.6
8	113.28.1120	1242	998	82	1198	1042	36	22	M20	40	6	1118	1122	72	10	65	0.5	10	944	95	8.1	11.4	230
	114.28.1120																	12	940.8	79	9.7	13.6
9	113.32.1250	1390	1110	91	1337	1163	40	26	M24	48	5	1248	1252	81	10	75	0.5	12	1048.8	88	11.3	15.7	350
	114.32.1250																	14	1041.6	75	13.2	18.2
10	113.32.1400	1540	1260	91	1487	1313	40	26	M24	48	5	1398	1402	81	10	75	0.5	12	1192.8	100	11.3	15.7	400
	114.32.1400																	14	1195.6	86	13.2	18.2

Note:
1.n1 is the nos of lubricating holes.Oi cup M10x1JB/T7940.1~JB/T7940.2.The Oil nipple'slocation can be change according to the user's application.
2..n- φ can change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the fomm is the max tooth force,the nominal tangentialtooth force is 1/2 of the max one.

4. “K" is addendum reduction coefficient.

Internal Gear 113/114 Series Single Row Crossed Roller Slewing Bearing-Part 2

Tags: 113114 Series Crossed Roller Slewing Bearing
