External Gear 111/112 Series Single Row Crossed Roller Slewing Bearing-Part 2

Product Item : 111.32.1400,112.32.1400
Category： Slewing Bearing
100% replace original part
China factory direct supply,competitive price
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

Characteristic of structure, performance and application

The single row crossed roller slewing bearing is composed of two seat rings, which design incompact structure and light weight, the clearance is small when assembly, so need high precision.The roller are 1:1 cross arranged, it can bear the axial force, tilting moment and relatively largeradial force. It is widely used for hoisting, transportation, construction machinery, and the militaryproducts.

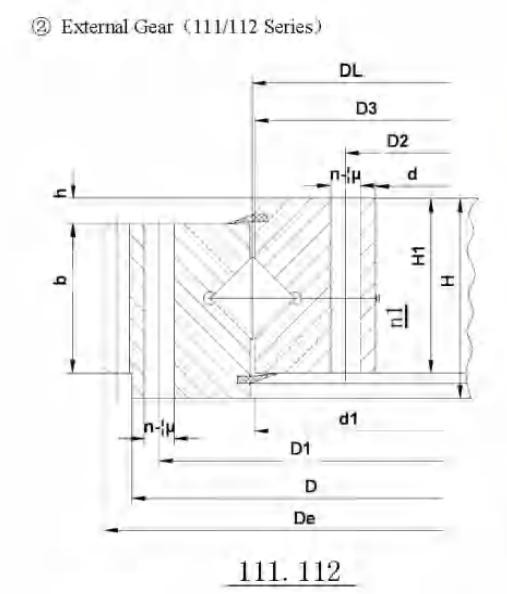

NO.	External gear DL mm	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					Tooth force		Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	dm mm	L mm	n1	D3 mm	d1 mm	H1 mm	h mm	b mm	x	M mm	De mm	z	Norm alizing Z10 4N	Quenching T10 4N

10	111.32.1400	1540	1260	91	1487	1313	40	26	M24	48	5	1398	1402	81	10	75	0.5	12	1605.6	131	11.3	15.7	400
	112.32.1400																	14	1607.2	112	13.2	18.2
11	111.32.1600	1740	1460	91	1687	1513	45	26	M24	48	5	1598	1602	81	10	75	0.5	14	1817.2	127	13.2	18.2	440
	11,232.1600																	16	1820.8	111	15.1	22.4
12	111.32.1800	1940	1660	91	1887	1713	45	26	M24	48	5	1798	1802	81	10	75	0.5	14	2013.2	141	13.2	18.2	500
	112.32.1800																	16	2012.8	123	15.1	22.4
13	111.40.2000	2178	1825	112	2110	1891	48	33	M30	60	8	1997	2003	100	12	90	0.5	16	2268.8	139	18.1	25	900
	112.40.2000																	18	2264.4	123	20.3	28.1
14	111.40.2240	2418	2065	112	2350	2131	48	33	M30	60	8	2237	2243	100	12	90	0.5	16	2492.8	153	18.1	25	1000
	112.40.2240																	18	2498.4	136	20.3	28.1
15	111.40.2500	2678	2325	112	2610	2391	56	33	M30	60	8	2497	2503	100	12	90	0.5	18	2768.4	151	20.3	28.1	1100
	112.40.2500																	20	2776	136	22.6	31.3
16	111.40.2800	2978	2625	112	2910	2691	56	33	M30	60	8	2797	2803	100	12	90	0.5	18	3074.4	168	20.3	28.1	1250
	112.40.2800																	20	3076	151	22.6	31.3
17	111.50.3150	3376	2922	134	3286	3014	56	45	M42	84	8	3147	3153	122	12	110	0.5	20	3476	171	27.6	38.3	2150
	112.50.3150																	22	3471.6	155	30.4	42.1
18	111.50.3550	3776	3322	134	3686	3414	56	45	M42	84	8	3547	3553	122	12	110	0.5	20	3876	191	30.4	38.3	2470
	112.50.3550																	22	3889.6	174	30.4	42.1
19	111.50.4000	4226	3772	134	4136	3864	60	45	M42	84	10	3997	4003	122	12	110	0.5	22	4329.6	194	30.4	42.1	2800
	112.50.4000																	25	4345	171	34.5	47.8
20	111.50.4500	4726	4272	134	4636	4364	60	45	M42	84	10	4497	4503	122	12	110	0.5	22	4835.6	217	30.4	42.1	3100
	112.50.4500																	25	4845	191	34.5	47.8

Note:
1.n1 is the nos of lubricating holes.Oi cup M10x1JB/T7940.1~JB/T7940.2.The Oil nipple'slocation can be change according to the user's application.
2..n- φ can change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the fomm is the max tooth force,the nominal tangentialtooth force is 1/2 of the max one.

4. “K" is addendum reduction coefficient.
