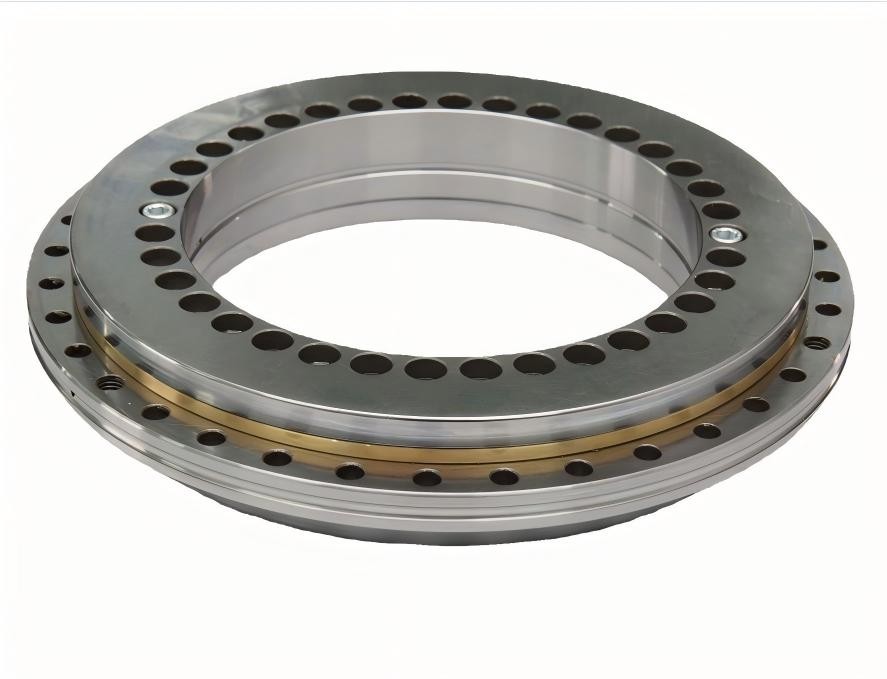

YRT150 Precision Rotary Table Bearing

As the upgraded model in our complete YRT series following YRT50, YRT80, YRT100 and YRT120, the YRT150 precision rotary table bearing is designed for medium-large precision rotary equipment that requires higher load capacity and stronger tilting stiffness. It adopts a mature three-row roller structure, consisting of two rows of axial cylindrical rollers and one row of radial cylindrical rollers.

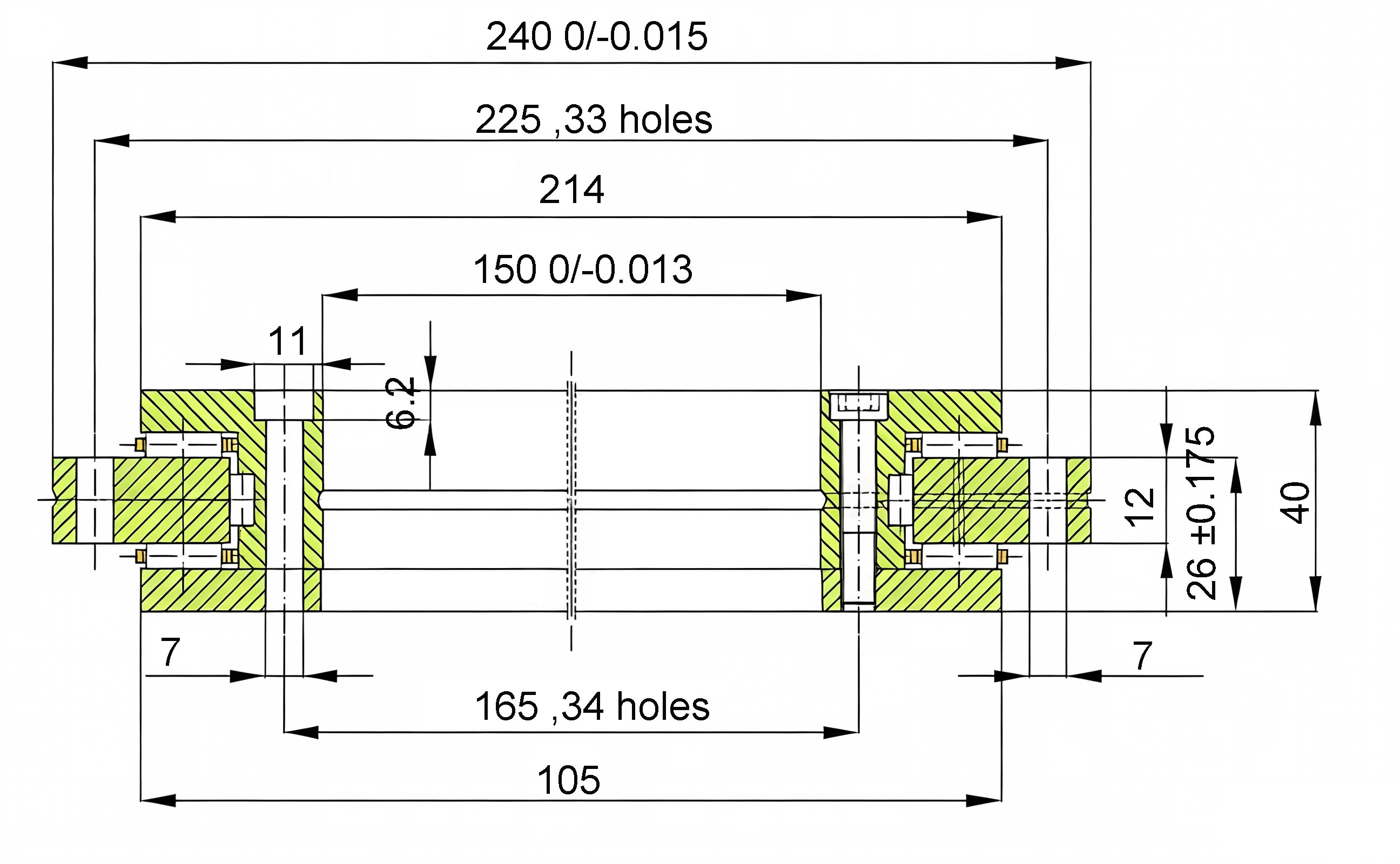

Key Technical Specifications
Inner Diameter: 150 mm | Outer Diameter: 240 mm | Overall Height: 40 mm
Weight: 6.2 kg
Axial and Radial Run-Out ≤3 μm
Precision Grade: Standard P4, optional ultra-precision P2
Limiting speed: 320 rpm
We provide full dimension inspection reports before shipment. Reach out for custom precision requirements and volume order support.
