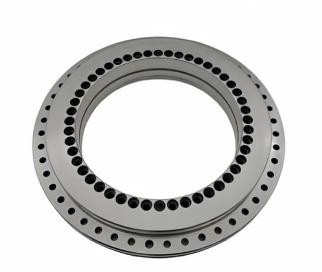

YRT180 Rotary Table Bearing

Product Item : YRT180
Category： Large-sized Bearings
Axial and Radial Run‑Out≤4 μm
Precision Grade: P4 / P2 ultra-precision optional
Weight: 7.7 kg
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

Following YRT50‑YRT150 series, YRT180 is a medium‑size high‑precision rotary table bearing for combined loads. It adopts three‑row roller construction, capable of supporting radial load, bidirectional axial load and heavy tilting moment simultaneously. Pre‑loaded from factory, no clearance adjustment required. Mounting holes distributed on both inner and outer rings for easy installation.

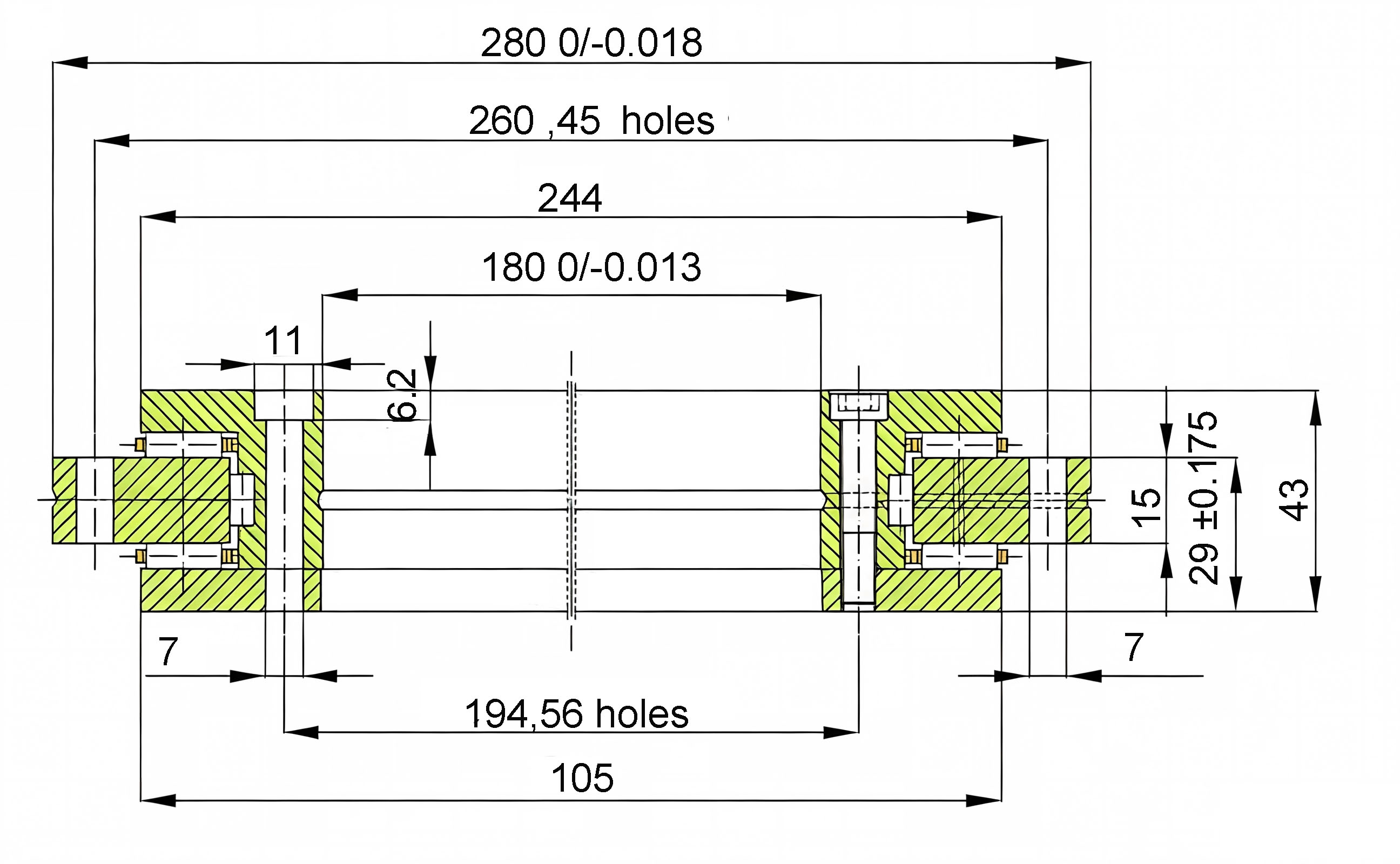

- Dimension: d 180 mm, D 280 mm, H 43 mm
- Precision: P4 / P2 optional
- Weight: 7.7 kg
-Axial and Radial Run-Out ≤3 μm
Applications: CNC rotary tables, 5‑axis machining centers, grinding machines, gear machines, indexing heads, test turntables and precision rotating joints.
We supply full YRT series from YRT50 up to large‑size models, with inspection documents available.
info@dpmachinery.com
Whatsapp: 008615366795302
