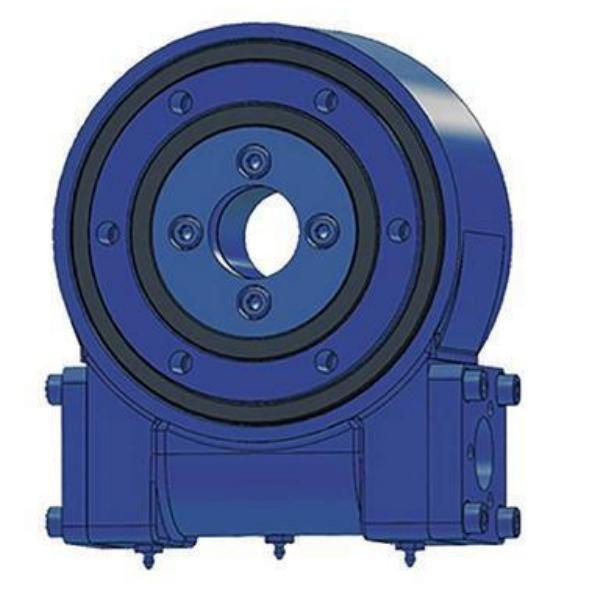

SEA5 Slewing Drive

Product Item : SEA5
Category： Slewing Drive
Precision Movement for Optimal Angle
High Torque & Self-Locking Capability:
Low Maintenance & High Reliability
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

The SEA series slewing drive utilizes worm gear transmission to achieve reverse self-locking and is widely used in areas such as aerial work platforms, fire truck ladders, marine cranes, and log forwarders.

The SEA5 is the smallest model in the SEA series slewing drive, offering excellent dust and water resistance with a protection rating of IP65, making it particularly suitable for outdoor and harsh environments. It can be paired with hydraulic motors or electric motors, providing multiple drive options.

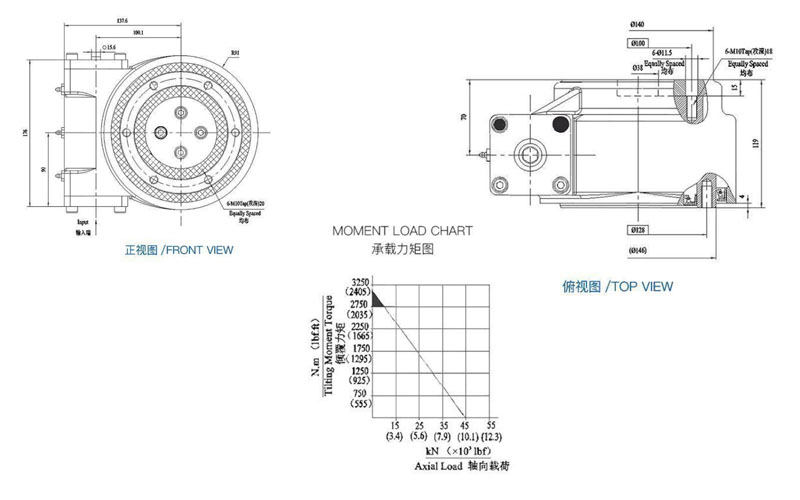

Below are the detailed parameters and drawings of the SEA5 slewing drive.

Slewing drive performance parameters
Output Torque	Tilting Moment Torque	Holding Torque	Axial Load	Radial Load	Ratio	Backlash	Weight
600 kN.m	3000 kN.m	5500 kN.m	45 kN	22 kN	62:1	≤0.20°	16kg
443 I bf.ft	2212.5 I bf.ft	4056 I bf.ft	1116 Ibf	4945 Ibf	62:1	≤0.20°	16kg
