062 Series Internal Gear Light Type Slewing Bearing

Characteristic of structure, performance and application
The Thin Section Slewing Bearing has the same structure with theordinary slewing bearing,but the weight is light,and rotateflexibly,which widely used in the food machinaery,canningmachinery and environmental machinery etc.

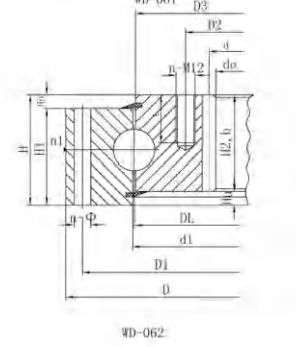

Model DL	Weight kg	Dimensions			Mounting Dimensions						Structural Dimension Gear data						Gear data					Tooth force Allowed[IN]	Tooth force MAX[IN]	Clearance Axial	Clearance Radial
		D mm	de mm	H mm	D1 mm	D2 mm	n	Ø mm	M mm	t	D3 mm	d1 mm	H1 MM	H2 mm	hu mm	ho mm	d mm	m mm	Z mm	k.m mm	b mm
WD-062.20.0414	31	486	326.5	56	460	375	24	13.5	12	20	415.5	412.5	45.5	45.5	10.5	10.5	335	5	67	-0.8	45.5	13.54	27.08	≤0.28	≤0.24
WD-062.20.0544	42	616	445.2	56	590	505	32	13.5	12	20	545.5	542.5	45.5	45.5	10.5	10.5	456	6	76	-0.6	45.5	16.00	32.00	≤0.30	≤0.26
WD-062.20.0644	50	716	547.2	56	690	605	36	13.5	12	20	645.5	642.5	45.5	45.5	10.5	10.5	558	6	93	-0.6	45.5	15.62	31.24	≤0.30	≤0.26
WD-062.20.0744	58	816	649.2	56	790	705	40	13.5	12	20	745.5	742.5	45.5	45.5	10.5	10.5	660	6	110	-0.6	45.5	15.32	30.64	≤0.30	≤0.26
WD-062.20.0844	69	916	737.6	56	890	805	40	13.5	12	20	845.5	842.5	45.5	45.5	10.5	10.5	752	8	94	-0.8	45.5	20.8	41.60	≤0.30	≤0.26
WD-062.20.0944	76	1016	841.6	56	990	905	44	13.5	12	20	945.5	942.5	45.5	45.5	10.5	10.5	856	8	107	-0.8	45.5	20.49	40.98	≤0.30	≤0.26
WD-062.20.1094	91	1166	985.6	56	1140	1055	48	13.5	12	20	1095.5	1092.5	45.5	45.5	10.5	10.5	1000	8	125	-0.8	45.5	20.16	40.32	≤0.30	≤0.26

Note:
1. n1 is the nos of lubricating holes.Oil cup M8x1]B/T7940.1~]B/7940.2.The Oil nipple'slocation can be change according to the user's application.4."Km" is addendum reduction.
