061 SeriesLight Type External Gear Slewing Bearing

Characteristic of structure, performance and application
The Thin Section Slewing Bearing has the same structure with theordinary slewing bearing,but the weight is light,and rotateflexibly,which widely used in the food machinaery,canningmachinery and environmental machinery etc.

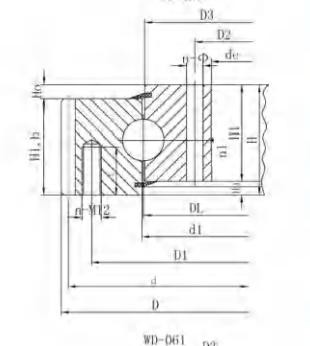

Model DL	Weight kg	Dimensions			Mounting Dimensions						Structural Dimension Gear data						Gear data					Tooth force Allowed[IN]	Tooth force MAX[IN]	Clearance Axial	Clearance Radial
		D mm	de mm	H mm	D1 mm	D2 mm	n	Ø mm	M mm	t	D3 mm	d1 mm	H1 MM	H2 mm	hu mm	ho mm	d mm	m mm	Z mm	k.m mm	b mm
WD-061.20.0414	31	504	342	56	455	368	20/24	13.5	12	20	412.5	415.5	45.5	45.5	10.5	10.5	495	5	99	-0.5	45.5	11.75	23.5	≤0.28	≤0.24
WD-061.20.0544	43	640.8	472	56	585	498	28/32	13.5	12	20	542.5	545.5	45.5	45.5	10.5	10.5	630	6	105	-0.6	45.5	14.2	28.4	≤0.30	≤0.26
WD-061.20.0644	52	742.8	572	56	685	598	32/36	13.5	12	20	642.5	645.5	45.5I	45.5	10.5	10.5	732	6	122	-0.6	45.5	14.2	28.4	≤0.30	≤0.26
WD-061.20.0744	59	838.8	672	56	785	698	36/40	13.5	12	20	742.5	745.5	45.5	45.5	10.5	10.5	828	6	138	-0.6	45.5	14.2	28.4	≤0.30	≤0.26
WD-061.20.0844	71	950.4	772	56	885	798	36/40	13.5	12	20	842.5	845.5	45.5	45.5	10.5	10.5	936	8	117	-0.8	45.5	18.93	37.86	≤0.30	≤0.26
WD-061.20.0944	77	1046.4	872	56	985	898	40/44	13.5	12	20	942.5	945.5	45.5	45.5	10.5	10.5	1032	8	129	-0.8	45.5	18.93	37.86	≤0.30	≤0.26
WD-061.20.1094	91	1198.4	1022	56	1135	1048	44/48	13.5	12	20	1092.5	1095.1	45.5	45.5	10.5	10.5	1184	8	148	-0.8	45.5	18.93	37.86	≤0.30	≤0.26

Note:
1. n1 is the nos of lubricating holes.Oil cup M8x1]B/T7940.1~]B/7940.2.The Oil nipple'slocation can be change according to the user's application.4."Km" is addendum reduction.
