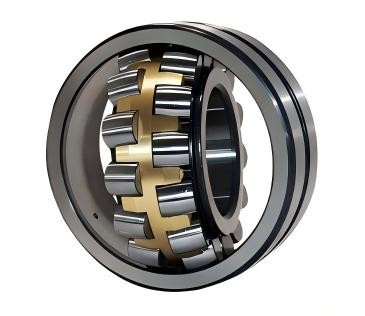

Spherical Roller Bearings 23030_23234 Series

As a core component in heavy industrial machinery, our spherical roller bearings (also known as self-aligning roller bearings) are engineered to deliver exceptional performance under the most demanding operating conditions.
Our spherical roller bearings are precision-manufactured using high-quality steel, rigorous heat treatment to enhance hardness, wear resistance, and overall structural robustness. Equipped with optional steel or brass cages (CA/CC/MB types) and available in open or sealed designs, they are tailored to meet the unique needs of diverse industrial sectors, ensuring long service life, reduced downtime, and lower maintenance costs.
We provide spot stock supply for standard models of spherical roller bearings to ensure fast shipment and shorten customer lead time. Meanwhile, reliable OEM customized services are available to meet special size, parameter and structural demands for non-standard industrial equipment.
The following are the detailed technical parameters of some of our standard in-stock spherical roller bearings.

Bearing type	Boundary dimension(mm)			Speed Rating(rpm)		Load Rating(kN)		Weight(kg)
	Inner dia.d	Outer dia.D	Height B	Grease Lubrication	Oil Lubrication	Dynamic Cr	Static Cor	Weight
23030	150	225	56	1400	1850	451	790	8.2
23032	160	240	60	1300	1700	515	900	9.85
23034	170	260	67	1200	1600	626	1112	12.5
23036	180	280	74	1100	1500	730	1290	17.2
23038	190	290	75	1050	1400	767	1390	19.8
23040	200	310	82	1000	1300	890	1950	23.65
23044	220	340	90	930	1100	1090	2040	28.9
23048	240	360	92	880	1000	1160	2220	32.8
23120	100	165	52	1700	2200	330	520	5.1
23122	110	180	56	1500	2000	386	613	6.3
23124	120	200	62	1400	1900	463	736	7.6
23126	130	210	64	1300	1800	492	812	8.62
23128	140	225	68	1200	1600	561	953	10.85
23130	150	250	80	1100	1500	747	1267	17
23132	160	270	86	1000	1400	870	1460	19.45
23134	170	280	88	990	1300	911	1565	21.1
23136	180	300	96	930	1200	1060	1850	26.9
23138	190	320	104	830	1050	1200	2120	34.9
23140	200	340	112	820	1100	1420	2530	47.5
23144	220	370	120	760	1000	1610	2900	51.5
23148	240	100	128	700	930	1840	3200	63.9
23220	100	180	60.3	2200	3000	502	590	6.85
23222	110	200	69.8	2000	2800	625	759	9.85
23224	120	215	76	1800	2500	745	912	12
23226	130	230	80	1700	2300	827	1050	14.5
23228	140	250	88	1500	2100	964	1240	19
23230	150	270	96	1500	1900	1135	1457	24.5
23232	160	290	104	1400	1900	1263	1650	31
23234	170	310	110	1300	1700	1481	1910	37.5
