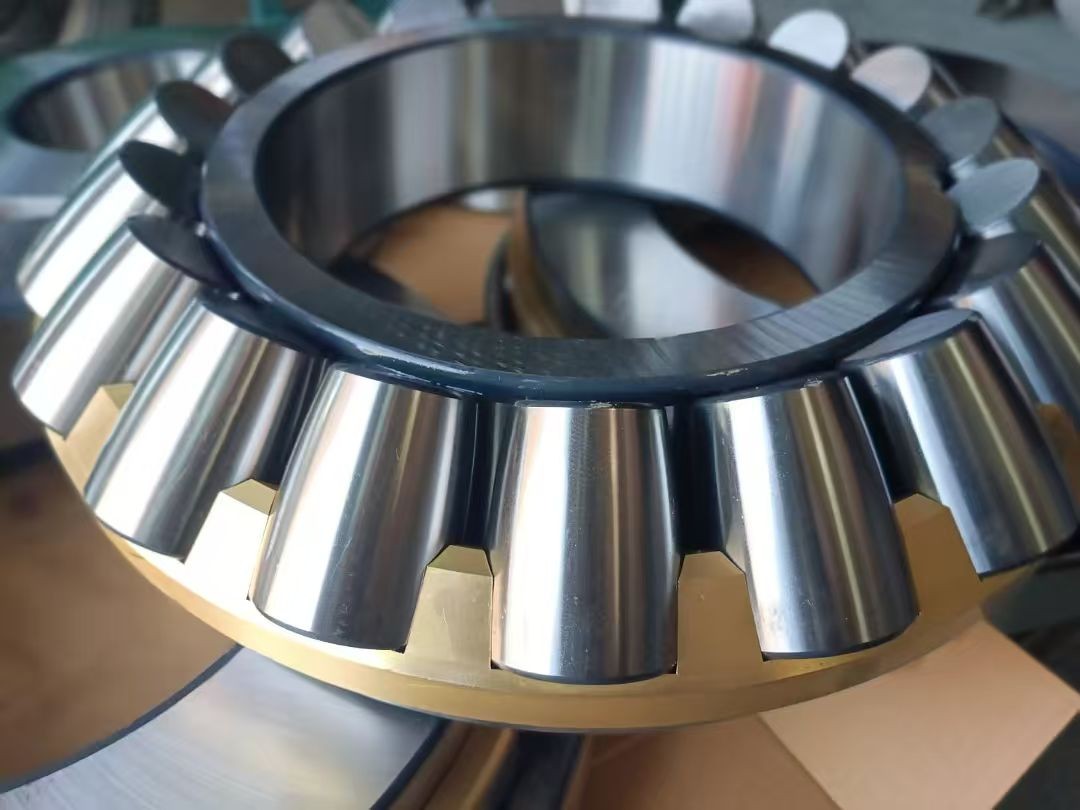

293/294 Series Spherical Thrust Roller Bearings

Product Item : 29240E, 29340E, 29440E
Category： Large-sized Bearings
High quality spherical roller bearing
Exceptional performance in the harshest conditions of mining
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

In heavy-duty industrial applications—where extreme axial loads, combined radial forces, and operational misalignment are inevitable—reliable bearing solutions are critical to minimizing downtime and maximizing equipment longevity.
Core Design Advantages of Type E Technology
The 293/294 Series Type E stands out from standard spherical thrust roller bearings with optimized internal geometry and structural
Optimized roller end-flange contact and precision cage design minimize frictional heat generation, even at relatively high speeds.

Our 293/294 Series Type E Spherical Thrust Roller Bearings cover a broad range of dimensions, with bore diameters from 60mm to 500mm, catering to diverse industrial needs.

Beanng type	Boundary dimension(mm)			Speed Rating(ipm)		Load Rating(kn)		Weight (kg)
Beanng type	ID	OD	T	Grease lubrication	Oil lubrication	Dynamic Cr	Static Cor	Weight (kg)
29240E	200	280	48	2000	1260	655	2650	8.15
29340E	200	340	85	2000	1030	1900	5600	27.3
29440E	200	400	122	1100	920	2550	8500	64.7
29244E	220	300	48	2000	1130	720	3150	9.18
29344E	220	360	85	1400	980	1560	5600	29.9
29444E	220	420	122	1100	860	2600	8500	67.4
29248E	240	340	60	1700	1040	1040	4500	16.1
29348E	240	380	85	1400	890	1630	6100	32.5
29448E	240	440	122	1100	790	2700	9500	73.5
29252E	260	360	60	1700	960	1060	4750	17
29352E	260	420	95	1200	810	2040	7650	45.2
29452E	260	480	132	1000	730	3100	11000	93.6
29256E	280	380	60	1500	890	1120	5100	19.2
29356E	280	440	95	1200	750	2120	8300	48.8
29456E	280	520	145	900	670	3650	12900	121
29260E	300	420	73	1400	830	1430	6550	28.6
29360E	300	480	109	1100	700	2550	9650	66.4
29460E	300	540	145	900	620	3900	14000	129
29264E	320	440	73	1300	770	1500	6950	30.3
29364E	320	500	109	1100	660	2650	10600	71
29464E	320	580	155	800	590	4300	15600	158
29268E	340	460	73	1300	730	1560	7350	32
29368E	340	540	122	950	600	3250	12900	98.9
29468E	340	620	170	750	530	5200	19000	200
29272E	360	500	85	1200	700	1900	8800	46.5
29372E	360	560	122	900	570	3350	13400	103
29472E	360	640	170	750	495	5400	20400	219
29276E	380	520	85	1100	650	2080	9650	48.4
29376E	380	600	132	850	530	3900	16000	132

The 293/294 Series Type E is engineered to excel in heavy-duty industries where reliability and performance are non-negotiable. Typical applications include:
Mining & Mineral Processing: Crushers, grinders, and conveyor systems subject to heavy shock loads.
Steel & Metallurgy: Continuous casting machines, rolling mills, and furnace equipment.
Cement & Concrete: Kilns, mills, and mixers operating in dusty, high-load environments.
Industrial Gearboxes & Drives: Heavy-duty gearboxes, top drives, and power transmission systems.
Oil & Gas: Drilling equipment and processing machinery in harsh offshore or onshore conditions.
Looking for a tailored bearing solution for your heavy-duty equipment?
