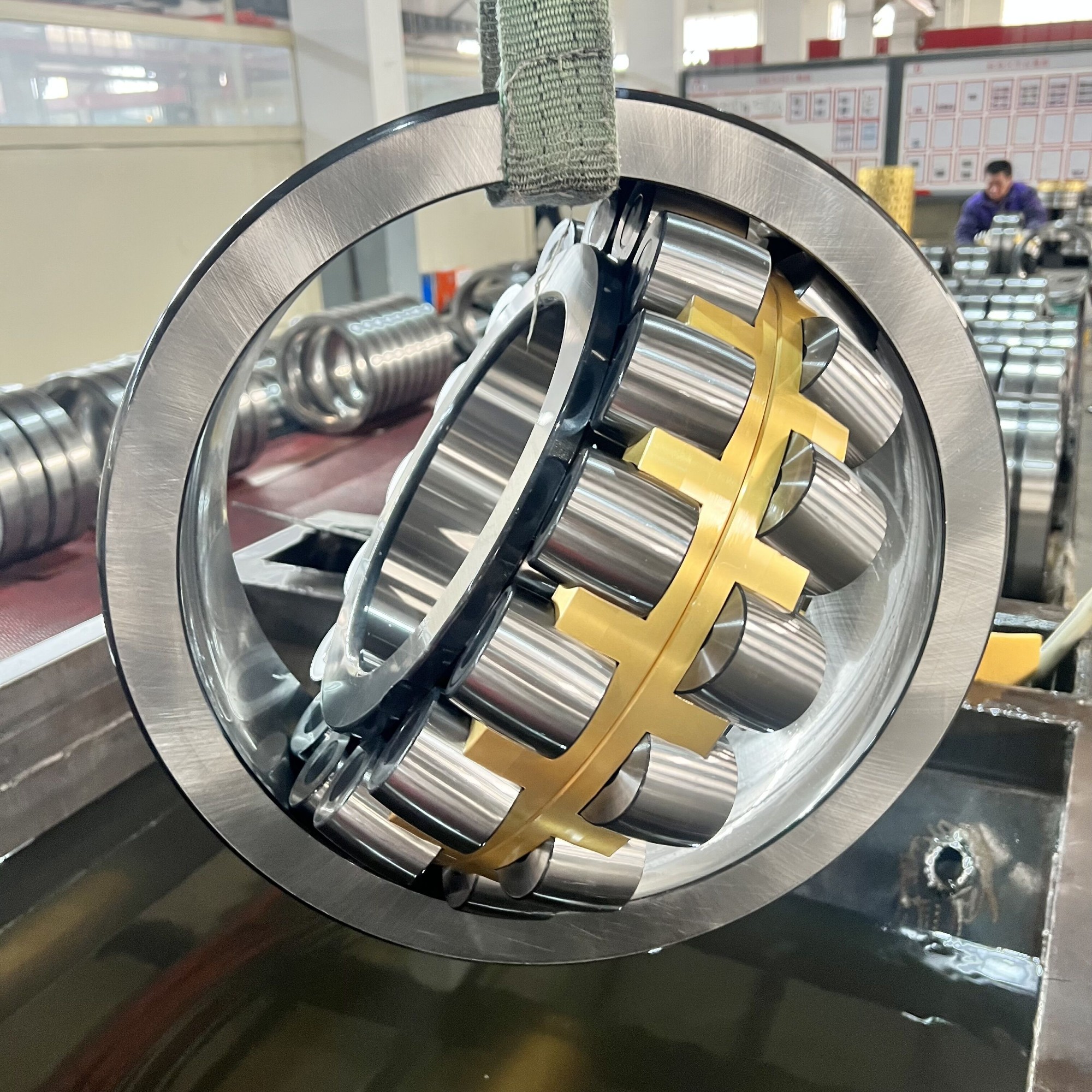

293/294 Series Type E Spherical Thrust Roller Bearings

Product Item : 293/294 Series Type E Spherical Thrust Roller Bear
Category： Large-sized Bearings
High quality spherical roller bearing
Exceptional performance in the harshest conditions of mining
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

Spherical roller bearings are classified into two types: cylindrical bore and tapered bore. Equipped with two rows of rollers, spherical roller bearings are primarily designed to withstand radial loads, while also accommodating axial loads in any direction. They feature high radial load-carrying capacity and are particularly suitable for heavy-load or vibration-load applications, but cannot sustain pure axial loads. The outer ring raceway of this bearing type is spherical, which grants it excellent self-aligning performance and enables compensation for misalignment errors.
Main Applications:
Paper machinery, reduction gears, railway vehicle axles, rolling mill gearbox housings, rolling mill rolls, crushers, vibrating screens, printing machinery, woodworking machinery, various industrial reducers, vertical housed spherical roller bearings.

293/294 Series Type E Partial Main Models

Bearing Model	Boundary dimension(mm)			Speed Rating(ipm)		LoadRating(kn)		Weight (kg)
Bearing Model	ID	OD	T	Grease lubrication	Oil lubrication	Dynamic Cr	Static Cor	Weight (kg)
29412E	60	130	42	6000	2750	420	970	2.5
29413E	65	140	45	5300	2550	495	1160	3.1
29414E	70	150	48	5000	2420	550	1290	3.8
29415E	75	160	51	4800	2230	650	1540	4.6
29416E	80	170	54	4500	2120	720	1720	5.5
29317E	85	150	39	4800	2270	420	1110	2.7
29417E	85	180	58	4000	2010	800	1910	6.5
29318E	90	155	39	4800	2160	420	1130	2.8
29418E	90	190	60	4000	1910	880	2130	7.5
29320E	100	170	41	4300	1970	495	1340	3.6
29420E	100	210	67	3400	1740	1060	2600	10.1
29322E	110	190	48	3600	1850	620	1760	5.2
29422E	110	230	73	3000	1600	1260	3150	12.8
29324E	120	210	54	3400	1710	800	2210	7.2
29424E	120	250	78	2800	1470	1460	3700	15.9
29326E	130	225	58	3000	1590	900	2600	8.8
29426E	130	270	85	2600	1360	1700	4350	21
29328E	140	240	60	2800	1500	1010	2900	10.3
29428E	140	280	85	2600	1300	1710	4500	22.1
29330E	150	250	60	2600	1410	1020	2900	10.5
29430E	150	300	90	2200	1190	2000	5300	27.2
29332E	160	270	67	2600	1330	1220	3550	14
29432E	160	320	95	2200	1090	2240	6000	32.1
29334E	170	280	67	2400	1260	1220	3500	14.2
29434E	170	340	103	2000	1030	2550	6900	39.6
29336E	180	300	73	2200	1170	1460	4300	18.4
29436E	180	360	109	1800	940	2850	7700	47.6
29338E	190	320	78	2200	1090	4680	4850	22.3
29438E	190	380	115	1200	970	2320	7500	54.9

Tags: E Spherical Thrust Roller Bearings
