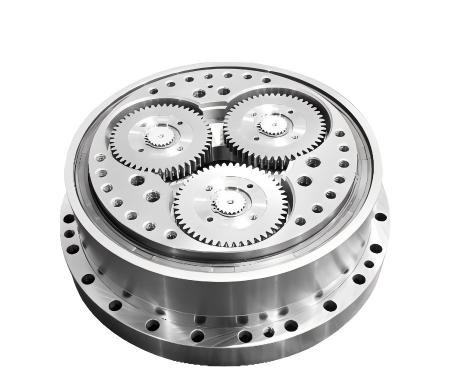

BX-E Series Cycloid RV Reducer

Product Item : BX20E,BX40E,BX80E,BX110E,BX160E,BX320E,BX450E
Category： Industrial Gearbox
High rigidity and strong load capacity, stable and reliable
Ultra-high precision, minimal backlash transmission
Low noise and smooth operation, silent running
Environmentally adaptable and easy to maintain
INQUIRY EMAIL

In the fields of industrial automation, robotics, and precision machinery, the core demand for reducers—"high precision, high rigidity, high durability, and compact size"—is increasingly stringent. The BX-E Series Cycloid RV Reducer (Cycloid Type) emerges as the times require, integrating the classic advantages of cycloid transmission technology with the innovative design of RV (Rotary Vector) structure. It breaks through transmission limits with outstanding performance, becoming the ideal choice for modern precision motion control systems.
The BX-E Series is a cycloid RV reducer specifically designed for high-end precision transmission scenarios. Its core lies in the deep integration of the stability of cycloid gear transmission and the high rigidity of the RV structure. Unlike the single transmission mode of traditional reducers, it adopts a two-stage design of "cycloid reduction (primary transmission) + planetary gear transmission (secondary transmission)". It not only retains the advantage of uniform force distribution from multi-tooth meshing of cycloid gears but also enhances overall rigidity and load-bearing capacity through the RV structure. Fundamentally solving the industry pain point of "precision and load being mutually exclusive", it is suitable for core equipment with extremely high requirements for transmission precision and operational stability.

Technical Specification Table

Rated Output Speed (r/min)		15		Transmission Precision	Lost Motion	Bending Moment Rigidity	Torsional Stiffness	Weight
Model	Ratio	Output Torque	Input Capacity	Transmission Precision	Lost Motion	Bending Moment Rigidity	Torsional Stiffness	Weight
Model	Output Shaft	Nm	kw	arc.min	arc.min	Nm/arc.min	Nm/arc.min	kg
BX20E	57 81 105 121 141 161	167	0.35	1	1	372	49	5
BX40E	57 81 105 121 153	412	0.86	1	1	931	108	9
BX80E	57 81 101 121 153	784	1.64	1	1	1176	196	13
BX110E	81 111 161 175.28	1078	2.26	1	1	1470	294	17
BX160E	81 101 129 145 171	1568	3.28	1	1	2940	392	26
BX320E	81 101 118.5 129 141 171 185	3136	6.57	1	1	4900	980	44
BX450E	81 101 129 154.8 171 192.4	4410	9.24	1	1	7448	1176	66

Welcome to contact our team to discuss your application scenarios and requirements, obtain detailed product brochures or customized quotes, and let the BX-E Series Cycloid RV Reducer inject precise transmission power into your equipment.
