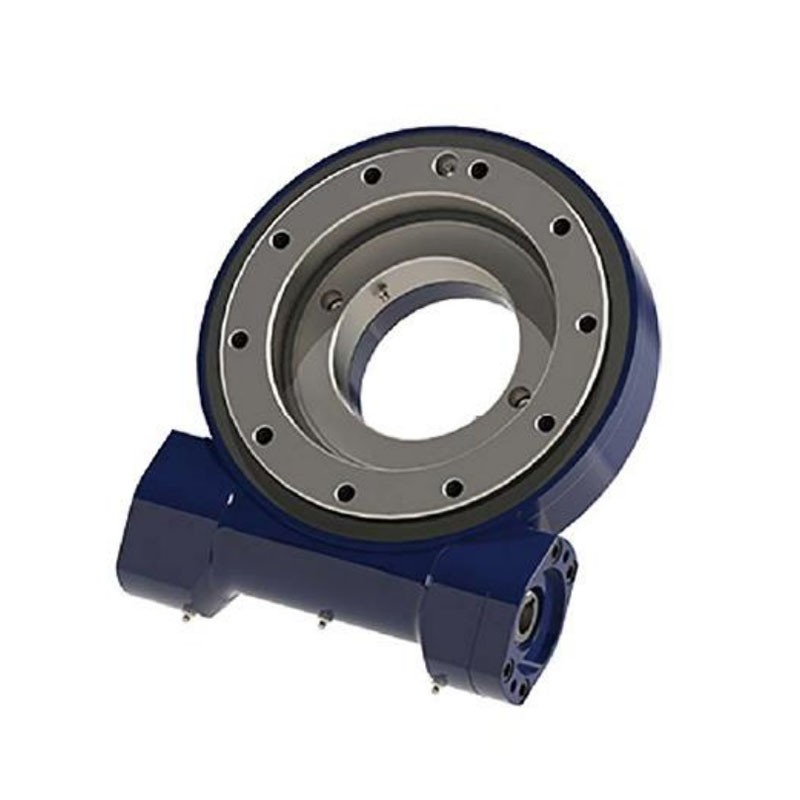

DERPIE Heavy duty Worm gear Slewing drive WEA7

Product Item : WEA7
Category： Slewing Drive
100% quality assurance
Exceptional Torque Capacity & High Reduction Ratios
Up to 3.5 kN.m (2,583 lbf.ft)
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

In the world of heavy machinery and robust industrial applications, every component must withstand immense stress, relentless cycles, and unforgiving environments. At the core of these powerful systems lies a critical component: the slewing drive.
The WEA7 Heavy-Duty Worm Gear Slewing Drive isn't just a component; it's the cornerstone of your machine's rotational motion.
Key Features & Unmatched Advantages
1. Exceptional Torque Capacity & High Reduction Ratios
2. Safety and stability
3. Superior Durability & Extended Service Life
Constructed from high-strength, case-hardened steel for the worm and high-quality alloy steel for the gear, the WEA7 is built to endure.
4. High Rigidity & Sealing Integrity
The robust housing of the WEA7 provides exceptional rigidity, minimizing deflection under heavy moment loads and shock forces.

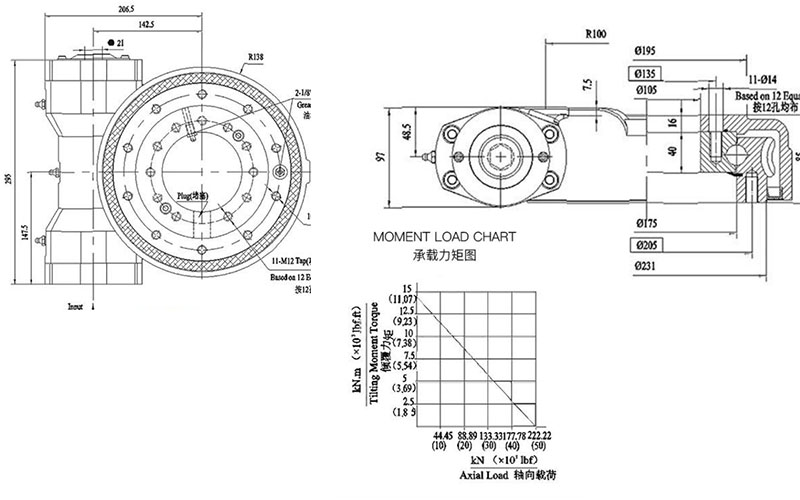

Technical Specifications at a Glance

Slewing drive performance parameters
Output Torque	Tilting Moment Torque	Holding Torque	Axial Load	Radial Load	Ratio	Backlash	Weight
3.5 kN.m	14.7 kN.m	20.6 kN.m	227 kN	92.7kN	47:1	≤0.15°	35kg
2583 lbf.ft	10.8*10³ lbf.ft	15.2*10³ lbf.ft	51*10³ lbf	20.8*10³ lbf	47:1	≤0.15°	35kg

[Contact Us Today] for a detailed datasheet, a consultation with our engineers, or a competitive quote.We promise you will get the reply within 12hours!

Mob/WA: +86-15366795302
Email: info@dpmachinery.com

Tags: WEA7 Slewing Drive
