External Gear 021/022 Series Double Row Ball Slewing Bearing-Part 2

Product Item : 021.40.1600,022.40.1600
Category： Slewing Bearing
100% replace original part
Double Row Ball Slewing Bearing
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

Double row ball slewing bearing has three seat ring, the steel ball and the spacing block can bedirectly arrange into the upper and lower races, two rows of upper and lower steel balls withdifferent diameter are fitted according to the stress condition.This kind of open assembly is very convenient, for the upper and lower bear raceway arc anglesis 90°,which can bear large axial forces and tilting moment. When the radial force is greaterthan 0.1 times the axial force need to be specially designed the raceway.Double row different ball slewing bearing's axial and radial size are relatively large and solid instructure, so it is specially suitable for the medium diameter tower cranes, truck mountedcranes etc. loading and unloading machinery.

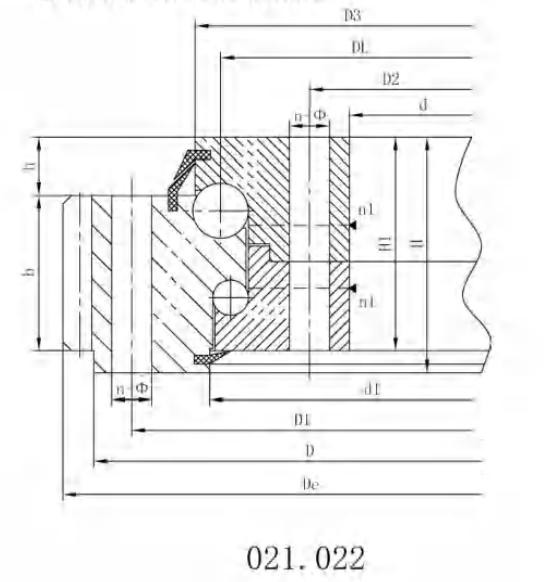

NO.	External gear DL mm	Dimensions			Mounting Dimensions						Structural Dimension			Gear data					Tooth force		Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	Ø mm	d3 mm	d1 mm	n1	H1 mm	h mm	b mm	x	M mm	De mm	z	Norm alizing Z10 4N	Quenching T10 4N

11	021.40.1600	1776	1424	160	1724	1476	45	26	1636	1635	5	150	39	90	0.5	14	1845.2	129	15.8	21.9	750
	022.40.1600															16	1852.8	113	18.1	25
12	021.40.1800	1976	1624	160	1924	1676	45	26	1836	1835	5	150	39	90	0.5	14	2055.2	144	15.8	21.9	820
	022.40.1800															16	2060.8	126	18.1	25
13	021.50.2000	2215	1785	190	2149	1851	48	33	2038	2035	8	178	47	120	0.5	16	2300.8	141	24.1	33.3	1150
	022.50.2000															18	2300.4	125	27.1	37.5
14	021.50.2240	2455	2025	190	2389	2091	48	33	2278	2275	8	178	47	120	0.5	16	2540.8	156	24.1	33.3	1500
	022.50.2240															18	2552.4	139	27.1	37.5
15	021.50.2500	2715	2285	190	2649	2351	56	33	2538	2532	8	178	47	120	0.5	18	2804.4	153	27.1	37.5	1700
	022.50.2500															20	2816	138	30.1	41.8
16	021.50.2800	3015	2585	190	2949	2651	56	33	2838	2832	8	178	47	120	0.5	18	3110.4	170	27.1	37.5	1900
	022.50.2800															20	3116	153	30.1	41.8
17	021.60.3150	3428	2872	226	3338	2962	56	45	3198	3196	8	214	56	150	0.5	20	3536	174	37.7	52.2	3300
	022.60.3150															22	3537.6	158	41.5	57.4
18	021.60.3550	3828	3272	226	3738	3362	56	45	3598	3596	8	214	56	150	0.5	20	3936	194	37.7	52.2	3700
	022.60.3550															22	3933.6	176	41.5	57.4
19	021.60.4000	4278	3722	226	4188	3812	60	45	4048	4046	10	214	56	150	0.5	22	4395.6	197	41.5	57.4	4200
	022.60.4000															25	4395	173	47.1	65.2
20	021.60.4500	4778	4222	226	4688	4312	60	45	4548	4546	10	214	56	150	0.5	22	4879.6	219	41.5	57.4	4700
	022.60.4500															25	4895	193	47.1	65.2

Note:
1.n1 is the nos of lubricating holes.Oi cup M10x1JB/T7940.1~JB/T7940.2.The Oil nipple'slocation can be change according to the user's application.
2..n- φ can change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the fomm is the max tooth force,the nominal tangentialtooth force is 1/2 of the max one.

4. “K" is addendum reduction coefficient.
