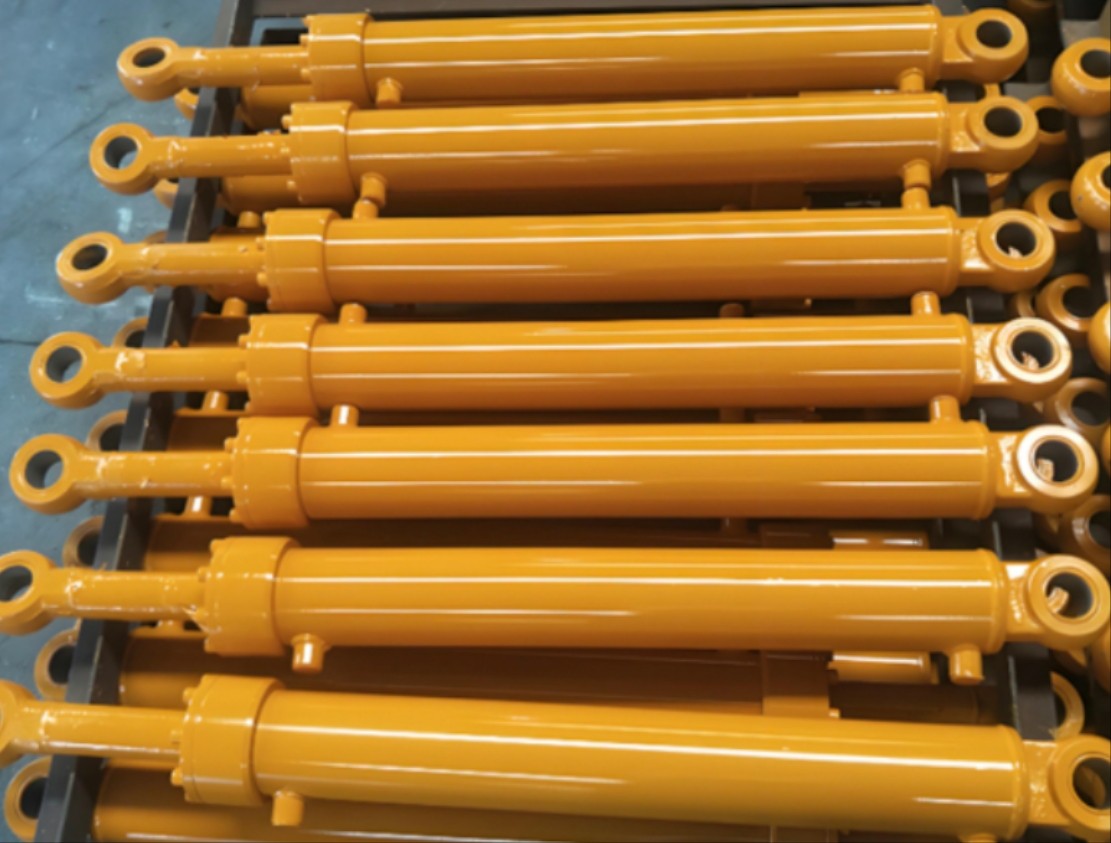

Hydraulic Cylinder

Product Definitions and Technical Principles

The hydraulic cylinder is the core executive component of the hydraulic system. Converts hydraulic energy into high-strength linear mechanical motion (or swing). Example:     200mm cylinder diameter under 20 MPa pressure can produce 62.8 , enough to drive excavator bucket to break rock.

Competitive advantages

Dimensionality                             The  Product                          Industry Routine

1. Leakage Rate                          <0.1 ml/min 1-5 ml/min

2.Response Speed                       15 ms                                     30-50 ms

3.Maintenance Cycle                    24 months                              6-12 months

Innovative Design

Step Seal : Three-stage sealing structure to cope with pressure shock

Cushion structure : End deceleration design reduces impact noise by 80%
