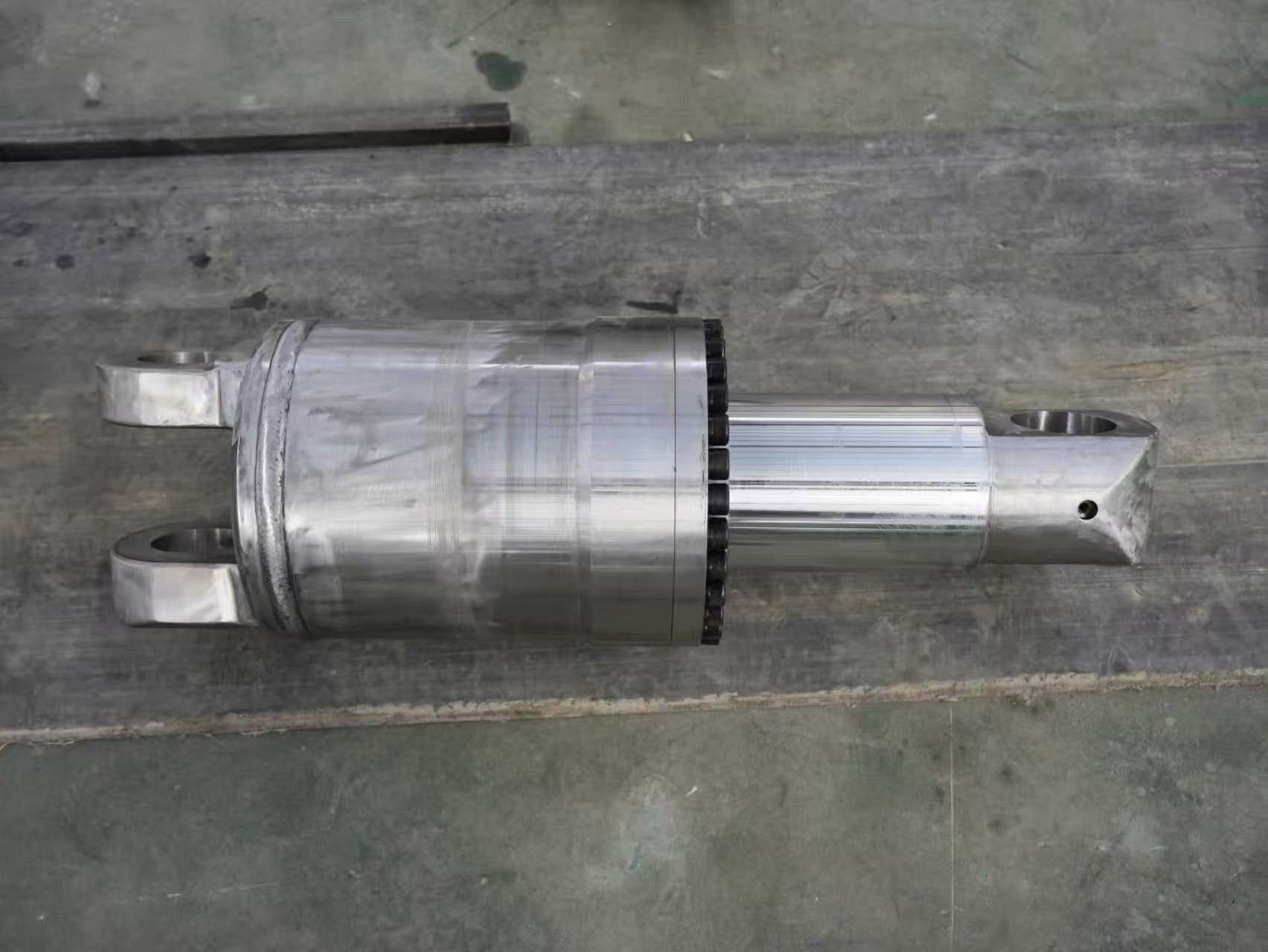

Low-Friction Servo Hydraulic Oil Cylinder

Core Function Description :

As the primary actuator in hydraulic systems, our cylinders convert hydraulic power into high-force linear motion for construction, agriculture, and industrial automation.         Available in double/single-acting designs with working pressures up to 3000 PSI and stroke accuracy of ±0.5mm, engineered for heavy-duty, high-cycle operations.

Hydraulic cylinders are the primary actuating components in hydraulic systems.

Zero-Leakage Guarantee: Tiered sealing system tested over 500,000 pressure cycles
- Anti-Side Load: Reinforced guide bushings increase misalignment tolerance by 40%
- Rapid Delivery: Standard units ship in 48h, custom solutions in 15 days
- Lifetime Support: Free seal replacement for the product lifecycle

Their core function is to convert hydraulic energy into mechanical energy, producing linear reciprocating motion or oscillating movement. A hydraulic cylinder consists of key     components including:
- Barrel

- Piston

- Piston rod

- Sealing components
- Guide bushing

- End caps

Operating Principle:

Hydraulic pressure applied to the piston creates force, driving the piston rod in linear motion. This linear output actuates external loads to perform mechanical work.

English Specs

Table of Technical Parameters：

Bore

Size:40mm——500mm

Stroke:Custom(Max8m)

Working

Pressure:1000——3000

Seals:Imported PU Seals

Temp Range:-40℃ to+200℃

Mounting

Standards:Iso6020/6022,SAE J518
