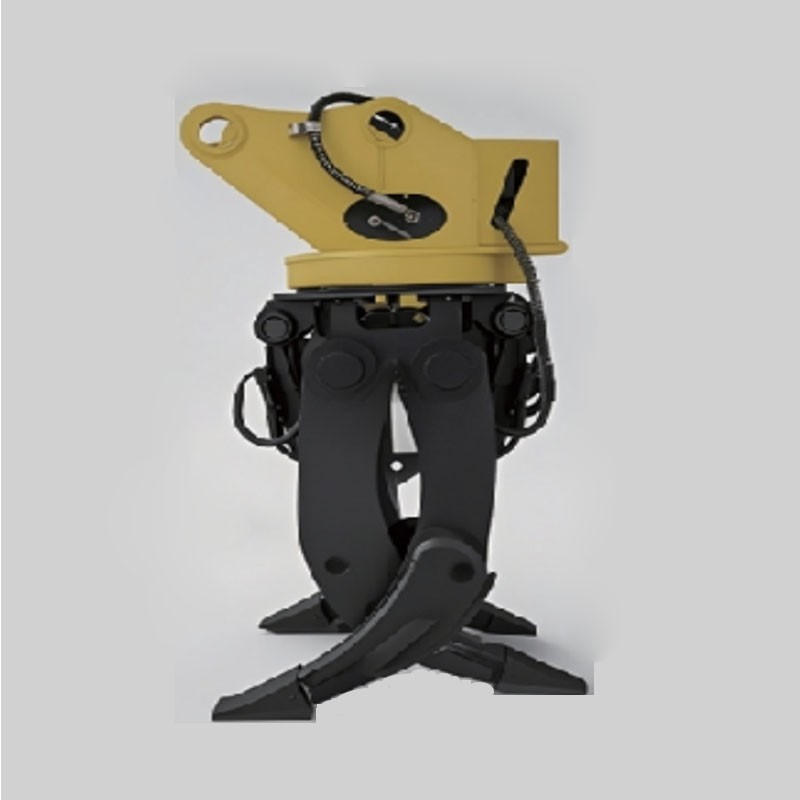

Rotary Log Grapple

Product Item : WOY-04,WOY-06,WOY-08
Category： Construction Precision Transmission
360° Continuous Rotatio
Exceptional Gripping Force
offers broad compatibility with a range of machinery
Robust Construction
INQUIRY EMAIL

Rotary Log Grapple: 360° Continuous Rotation with Exceptional Gripping Force

In the demanding world of log handling, forestry, and recycling, efficiency, power, and reliability are paramount. Our Rotary Log Grapple is engineered to meet these challenges head-on, delivering unmatched performance and durability. Designed with advanced features like 360° continuous rotation, exceptional gripping force, broad compatibility, and built-in durability, this grapple is the ultimate solution for professionals seeking to maximize productivity and minimize downtime in the most demanding material handling applications.
Our Rotary Log Grapple is incredibly versatile, ideal for:
Forestry and Logging: Loading and unloading logs, sorting, and stacking in yards or onto trucks .
Recycling Centers: Handling scrap metal, waste, and various recyclable materials .
Demolition and Construction: Sorting and handling debris, lumber, and other materials on-site .

Port and Shipyard Operations: Efficiently unloading timber and other cargo from ship holds using compatible cranes .

Item/model	Unit	WOY-04	WOY-06	WOY-04	WOY-06	WOY-08
Compatible excavators	ton	5-12	12-18	5-12	12-18	18-28
Weight	kg	380	665	350	785	1450
Overall dimension [length]	mm	840	1020	715	780	1400
Overall dimension [width]	mm	635	790	410	190	740
Overall dimension [height]	mm	1380	1700	1280	1780	2160
Opening	mm	1.2	1.5	1.4	1.88	1.9
Control mode		Electrical Control	Electrical Control	Electrical Control	Electrical Control	Electrical Control
Compatible pressure	mpa	14-16	15-23	14-16	15-23	20-25

Key Features & Benefits
1. 360° Continuous Rotation
Unrestricted Maneuverability: Experience complete control with true 360° continuous rotation . This allows operators to precisely position the grapple and easily access logs or materials from any angle without needing to reposition the entire machine, significantly enhancing operational efficiency and flexibility in confined spaces like truck beds or ship holds
2. Exceptional Gripping Force
Secure Material Handling: Engineered with powerful hydraulic cylinders and high-strength, interlocking jaw structures , the grapple delivers immense gripping force.
Optimized Jaw Design: The specialized shape of the jaws allows for easier rolling and gathering of materials like logs, facilitating quicker and more efficient collection for each lift .
3. Broad Compatibility
Versatile Machine Attachment: Designed for seamless integration, this rotary log grapple offers broad compatibility with a range of machinery. It can be mounted on various equipment, including excavators (from smaller to larger tonnages) , portal cranes , and other material handlers.
4. Durability Built-In
Robust Construction: Built to withstand the harshest environments, the grapple features components made from high-strength steels .
Equip your machinery with the power and precision of our Rotary Log Grapple. Contact our team today for more information, detailed specifications tailored to your carrier machine, and competitive pricing.
