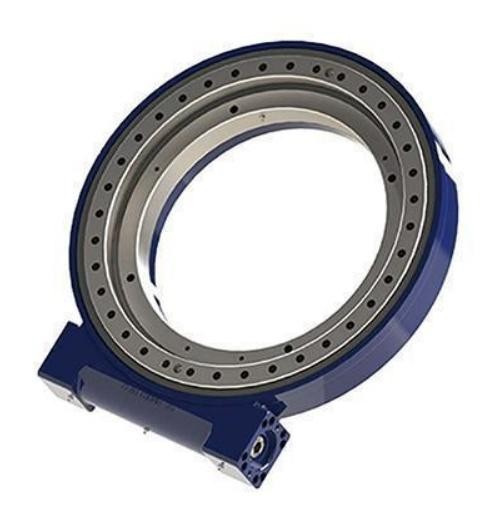

WEA25 Enclosed Housing Worm Gear Slewing Drive

Product Item : WEA25
Category： Slewing Drive
high-precision worm gear
a wide range of heavy-duty industrial applications
Competitive price
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

When your application involves massive loads and requires unwavering reliability under extreme stress, you need a rotational solution built to endure. The WEA25 Slewing Drive is engineered to meet this challenge head-on. As a robust unit within our product line, the WEA25 integrates a high-precision worm gear set with a large-diameter slewing bearing, delivering exceptional torque and moment load capacity for the most demanding industrial environments.
From heavy-duty cranes and excavators to large-scale material handling systems, the WEA25 provides the powerful, smooth, and dependable rotation that is critical to your operation's productivity and safety.

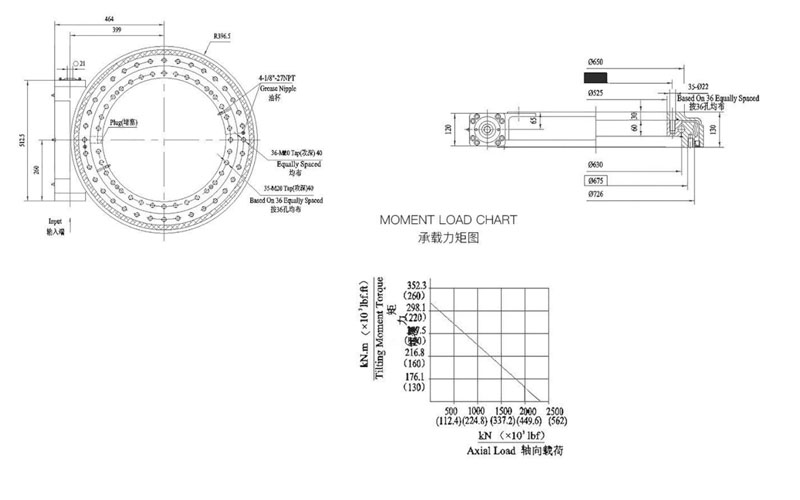

Technical Specifications

Slewing drive performance parameters
Output Torque	Tilting Moment Torque	Holding Torque	Axial Load	Radial Load	Ratio	Backlash	Weight
34.2 kN.m	310 kN.m	160 kN.m	2400 kN	950 kN	104:1	≤0.1°	200kg
25240 I bf.ft	229*10³ I bf.ft	118*10³ I bf.ft	539.5*10³ Ibf	213.6*10³ Ibf	104:1	≤0.1°	200kg

The WEA25 is built for a wide range of heavy-duty industrial applications, including:

Construction Machinery: Knuckle boom cranes, excavator attachments, and concrete boom pumps.
Material Handling: Stacker cranes, ship loaders/unloaders, and heavy-duty rotary tables.
Industrial Processing: Large mixers, trommels, and welding positioners.
Forestry and Mining Equipment: Harvester heads, forwarders, and screening plants.
