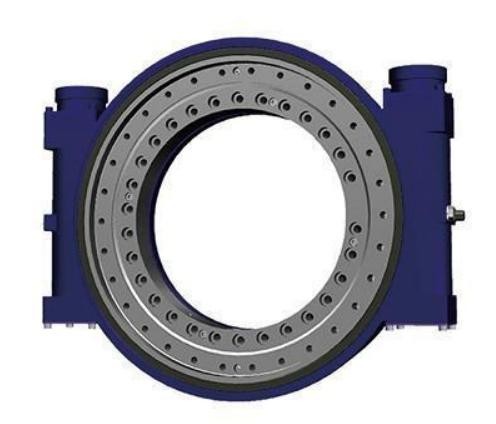

WEA21-2 Dual Worm Gear Slewing Drive

Product Item : WEA21-2
Category： Slewing Drive
Dual Worm Gear System
Achieve high torque, ultra-low backlash
bi-directional self-locking
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

When your application demands the ultimate in torque, rigidity, and operational safety, standard single-worm drives have a limit. Meet the WEA21-2 Slewing Drive, engineered with a dual-worm gear system to deliver unparalleled performance for the most challenging heavy-duty and safety-critical operations. This robust design eliminates internal bearing play, drastically reduces backlash, and provides true bi-directional self-locking for maximum security and precision.
The WEA21-2 builds upon the proven foundation of the WEA21 by incorporating two opposing worm gears that engage with the central slew bearing. the definitive choice where high moment loads, shock resistance, and pinpoint rotational accuracy are non-negotiable.Dual Worm Gear System: The core of its performance, providing balanced torque, superior stiffness, and near-zero backlash for precise motion control.

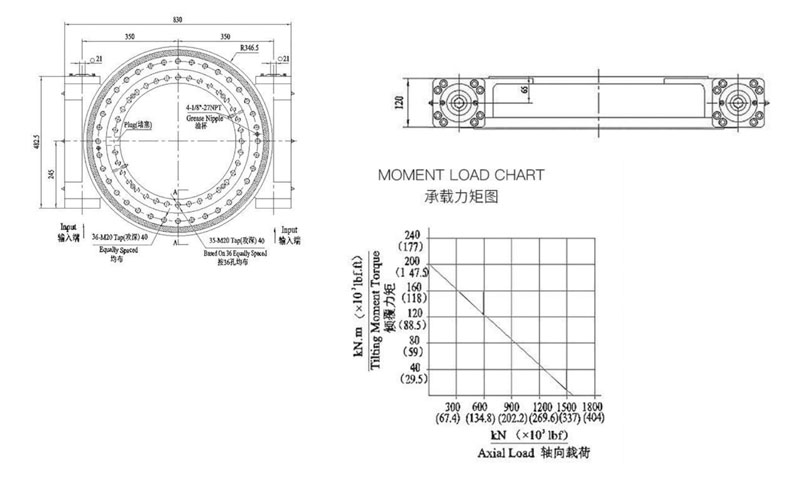

Technical Specifications ( WEA21-2 Model)

Slewing drive performance parameters
Output Torque	Tilting Moment Torque	Holding Torque	Axial Load	Radial Load	Ratio	Backlash	Weight
48 kN.m	203 kN.m	181 kN.m	1600 kN	650 kN	90:1	≤0.13°	200 kg
35400 I bf.ft	150*10³ I bf.ft	141*10³ I bf.ft	359.7*10³ Ibf	146*10³ Ibf	90:1	≤0.13°	200 kg
