The SEA25 slewing drive has the highest output torque, overturning moment, holding moment, axial load capacity, and radial load capacity in the SEA series of slewing drives.
As the core transmission component of equipment, the slewing reducer acts like the "joint" of the machinery, undertaking the critical tasks of rotation, support, and transmission. The performance and reliability of the slewing reducer have a decisive impact on the stability and efficiency of the entire mechanical system.

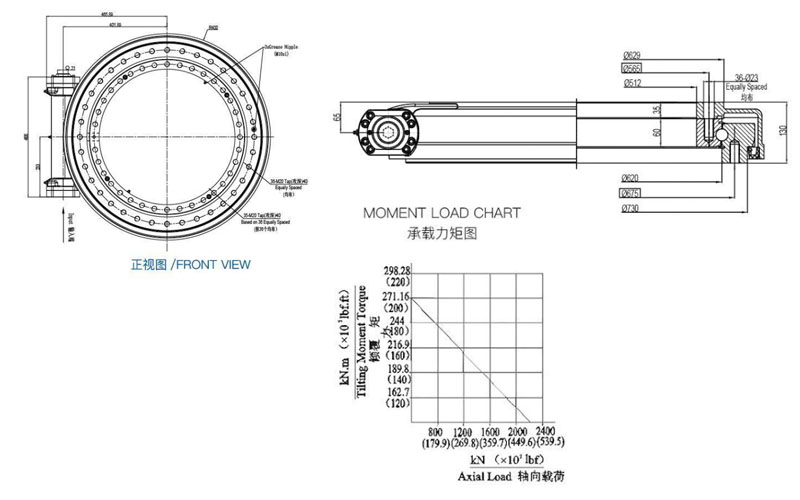

Below are the product parameters and drawings for the SEA25 slewing drive.
Slewing drive performance parameters
Output
Torque
Tilting Moment
Torque
Holding
Torque
Axial Load
Radial
Load
Ratio
Backlash
Weight
18 kN.m
271 kN.m
159 kN.m
2400 kN
950 kN
150:1
≤0.15°
205kg
13300
Ibf.ft
200*10³
Ibf.ft
117.3*10³
Ibf.ft
539.5*10³
Ibf
213.6*10³
Ibf
