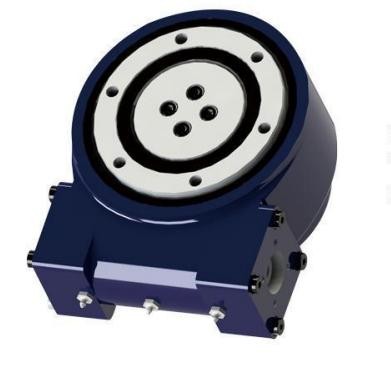

SEA5C Slewing Drive

SEA5C Slewing Drive: High-Capacity, Compact Rotary Power
The SEA5C slewing drive, a premium-grade rotary actuator engineered to deliver exceptional torque and reliable, precise rotation in the most demanding applications. This compact yet powerful slewing drive combines a single-row ball slewing ring with a high-ratio worm gear to provide a robust solution for heavy loads and harsh environments.
Whether you are designing a sophisticated solar tracker system, heavy construction machinery, or complex automation equipment, the SEA5C model offers the performance and durability you need to ensure operational excellence and long-term reliability.

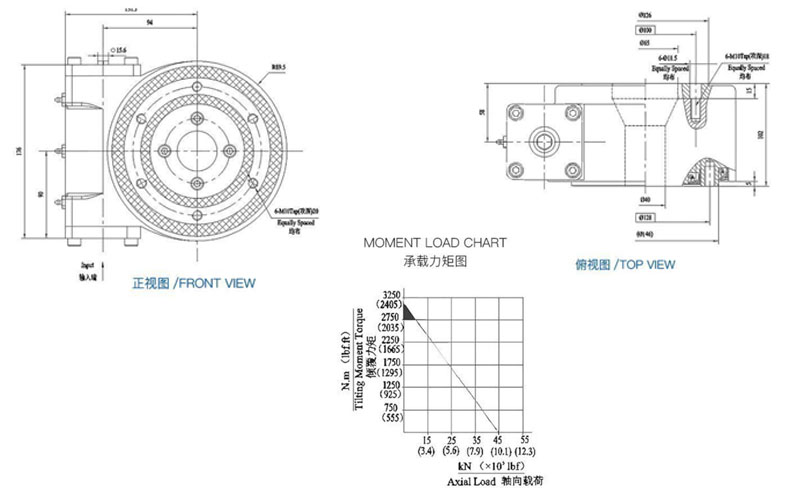

The following are the detailed specifications and drawings for the SEA5C product.

Slewing drive performance parameters
Output Torque	Tilting Moment Torque	Holding Torque	Axial Load	Radial Load	Ratio	Backlash	Weight
600 KN.m	2800 kN.m	5000 kN.m	45 kN	22 kN	62:1	≤0.20°	16kg
443 I bf.ft	2066 I bf.ft	3690 I bf.ft	10116 Ibf	4945 Ibf

Ready to Integrate Robust Rotary Motion into Your Machine?
Browse our full slewing drive catalog or contact our engineering sales team today for a custom quote. Let us help you find the perfect drive solution for your project.
