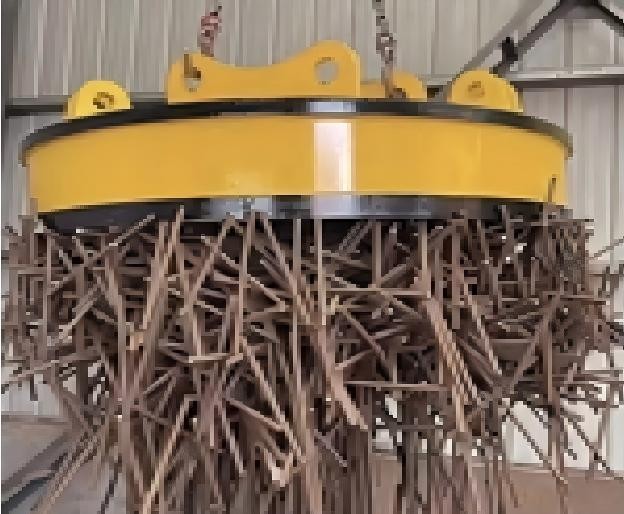

Electromagnetic Chuck

Product Item : WOY-70L/1,WOY-80L/1,WOY-120L/1,WOY-130L/1,WOY-150L
Category： Construction Precision Transmission
Strong Adsorption Force
Convenient and Easy Operation
Safe and Reliable Performance
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

Electromagnetic Chuck | Strong Magnetic Force for Machining & Material Handling

An electromagnetic chuck is a versatile and essential tool across multiple industrial sectors, including machining, metallurgy, and mining. Utilizing a powerful magnetic field generated when electrified, it provides a highly efficient and secure method for handling, holding, and moving ferromagnetic materials and workpieces. Its core principle—converting electrical energy into a strong, controllable magnetic force—makes it superior to traditional mechanical clamping methods.

Key Applications of Electromagnetic Chucks

1. Metallurgical Industry

The handling of steel plates, blocks, and other ferromagnetic materials is streamlined with electromagnetic chucks. They provide a reliable grip for lifting, transporting, and positioning heavy loads in foundries, steel mills, and fabrication shops, enhancing operational safety and workflow.

2. Mining and Mineral Processing

In the mining industry, electromagnetic chucks play a crucial role in extracting and separating iron impurities from ores. This helps in purifying the mined material, protecting downstream equipment from damage, and improving the overall quality of the final product.

Core Features and Benefits

Strong Adsorption Force

Our electromagnetic chucks generate a powerful magnetic field upon energization, creating a strong adsorption force capable of holding even the heaviest ferromagnetic objects securely. This ensures stability and reliability during the most demanding industrial tasks.

Convenient and Easy Operation

Operation is straightforward and efficient. The adsorption and release of materials are controlled simply by switching the electric current on and off. This immediate response allows for quick loading and unloading, significantly speeding up work cycles.

Safe and Reliable Performance

Eliminating the need for traditional mechanical clamps, the electromagnetic chuck reduces the risk of workpiece slippage or accidental falls. This non-contact holding method minimizes wear and tear, enhances workplace safety, and ensures consistent, reliable performance over time.

Item/model	Unit	WOY-70L/1	WOY-80L/1	WOY-120L/1	WOY-130L/1	WOY-150L/1
Weight	kg	490	620	1800	2010	2830
Overall dimension	mm	700	800	1200	1300	1500
Kilowatt of power	kw	3.3	3.96	9.02	12	15.6
Cold-state current	a	15	18	41	54	71.2
Large ingot	kg	2500	3000	7500	8500	11000
Cast iron ingot	kg	380/200	480/250	1200	1400/1100	1900/1500
Cuttings	kg	120/100	150/130	600	700/600	1100/900

Our products are built for durability, maximum magnetic force, and operational safety, helping you boost productivity and protect your valuable assets.
