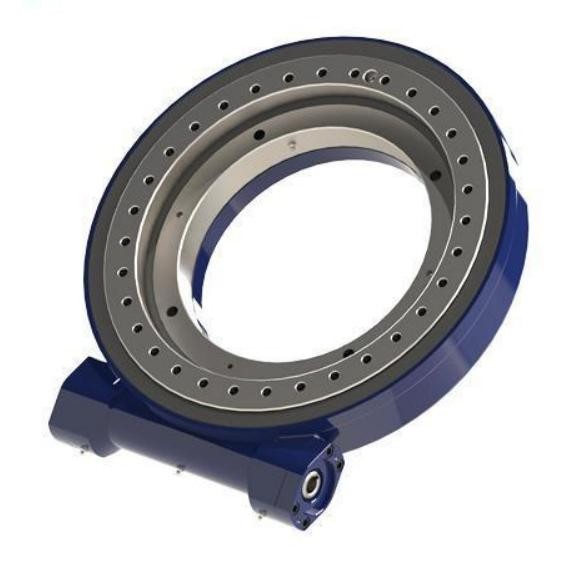

SEA17 Slewing Drive

Product Item : SEA17
Category： Slewing Drive
100% quality assurance
China factory direct supply,competitive price
Dimensional same as original part
Contact us for more information. info@dpmachinery.com
INQUIRY EMAIL

A slewing drive is typically composed of components such as a worm gear, slewing bearing, housing, and motor. Thanks to its core component—the slewing bearing—it can simultaneously withstand axial loads, radial loads, and overturning moments.
While there are many variations of slewing drives, their fundamental structures are largely similar.
The components from left to right (upper section) are:
Outer Ring (with or without gear teeth),Sealing Strip,Rolling Elements (balls or rollers),Grease Fitting

The components from left to right (lower section) are:

Plug,Plug Pin,Inner Ring (with or without gear teeth),Spacer or Cage,Mounting Holes (tapped holes or plain holes)

The SEA17 slewing drive is larger than the SEA14 model. Its axial load capacity, radial load capacity, and overturning moment capacity are approximately twice that of the SEA14. It is suitable for heavy-duty machinery such as cranes and excavators.

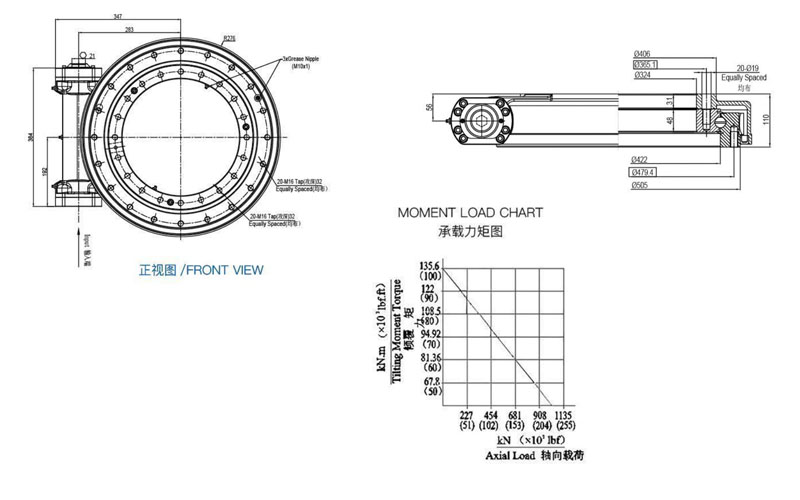

The product parameters and drawings for the SEA17 are as follows.

Slewing drive performance parameters
Output Torque	Tilting Moment Torque	Holding Torque	Axial Load	Radial Load	Ratio	Backlash	Weight
10 kN.m	135.6 kN.m	73 kN.m	980 kN	400 kN	102:1	≤0.15°	106kg
7400 I bf.ft	100*10³ I bf.ft	53.9*10³ I bf.ft	220*10³ Ibf	89.9*10³ Ibf	102:1	≤0.15°	106kg
